BINDER premium 125 CTD C14M CARBON

BINDER premium 125 CTD C14M CARBON

BINDER premium 90 CTD C14M CARBON

BINDER custom 50 ATK5K6 BFX

CONTI® synchrochain carbon belt

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mass and dimensions Mechanical data Kinematic data Others

Range: BINDERpremium

Product range power belts: CONTI® synchrochain carbon belt

Applications: High power application

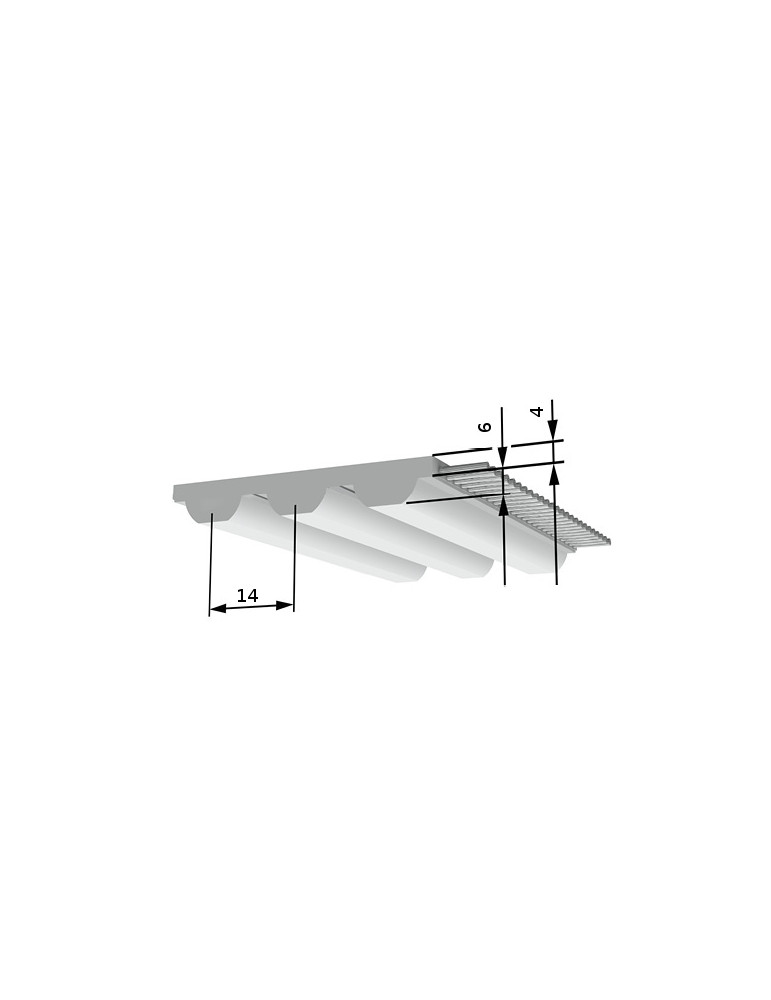

Profile / Pitch: CTD C14

Profile: CTD

Pitch: 14

PU Material steel tension member: DNSU 9590

Shore hardness steel tension member belt: 95 ShA

Temperature range of steel tension member belt: -55 à 100 °C

Minimum length: 998 - 4410 mm

Standard belt lengths: 1120, 2520, 994, 1190, 1260, 1344, 1400, 1568, 1610, 1750, 1890, 1960, 2100, 2240, 2310, 2380, 2450, 2520, 2590, 2660, 2730, 2800, 3136, 3304, 3360, 3500, 3850, 3920, 4410, 3163, 5502 mm

Belt width: 125 mm

Weight: 0,975 kg/m

Number of teeth: 71, 80, 85, 90, 96, 100, 112, 115, 125, 135, 140, 150, 160, 165, 170, 175, 180, 185, 190, 195, 200, 224, 236, 240, 250, 275, 280, 315, 393

Steel tension member permissible force FN: 37810 N

Z min single bending standard cable: 28

Ø min Flexion simple câble standard: 375 mm

Product range: CONTI® synchrochain carbon belt
