BINDER custom 75 BAT10 BFX

BRECOFLEX® Self-guiding belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® Self-guiding belt
Applications
Self-guided precision application

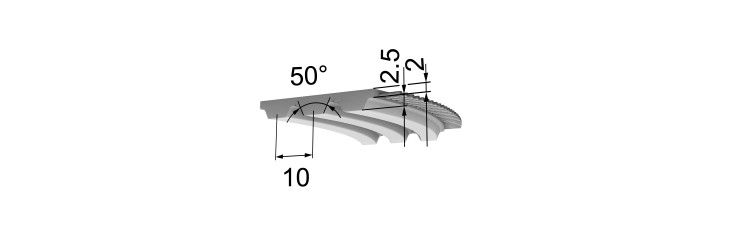

Profile / Pitch
BAT10
Profile
BAT
Pitch
10
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤ 70 kW
Steel tension member permissible force FN
12000 N
Stainless steel member permissible force FN
8640 N
N max
10000 tr/min
V max
60 m/s
Minimum length
≥720 mm
Standard belt lengths
720, 800, 920, 960, 1600, 2000, 4000, 1400, 2240, 2800, 840, 890, 1500, 880, 1800, 780, 1100, 1700, 1900, 2120, 2360, 2500, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 810, 850, 970, 980, 1010, 1080, 115
Belt width
75 mm
Weight
0,436 kg/m
Number of teeth
80, 115, 125, 140, 150, 160, 180, 200, 400, 450, 500, 85, 170, 190, 81, 92, 110, 124, 78, 97, 98, 530, 560, 600, 630, 670, 710, 750, 72, 84, 88, 89, 96, 101, 108, 121, 132, 425, 475
Z min alternating bending E cable
20
Z min single bending standard cable
20
Ø min Flexion simple câble standard
60 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
Z min single bending E cable
18
Ø min Flexion simple câble E
50 mm
Ø min alternée simple câble E
80 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
80 mm
Z min alternating bending stainless steel cable
40
Ø min alternée simple câble Inox
130 mm
