BINDER custom 50 BATK15 BFX Power belts

BRECOFLEX® Self-guiding belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER custom 50 BATK15 BFX

BRECOFLEX® Self-guiding belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® Self-guiding belt
Applications
Self-guided precision application

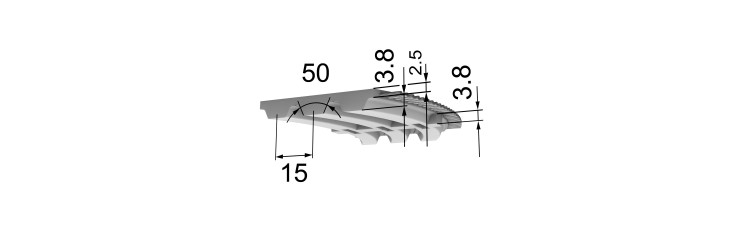

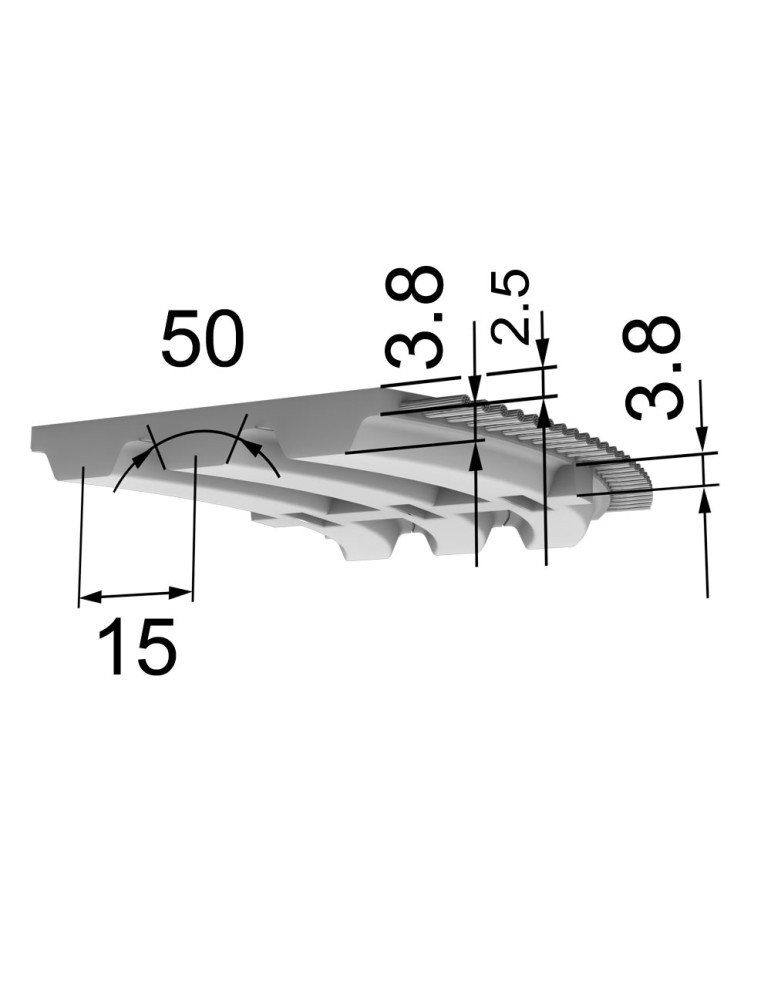

Profile / Pitch
BATK15
Profile
BATK
Pitch
15
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤ 140 kW
Steel tension member permissible force FN
10400 N
Stainless steel member permissible force FN
8300 N
N max
8000 tr/min
V max
48 m/s
Minimum length
≥1500 mm
Standard belt lengths
1500, 1800, 3000, 3750, 4500, 6000, 6300, 7500, 1590, 1710, 1905, 1995, 2250, 2505, 2790, 3285, 3495, 4005, 4245, 4740, 4995, 5295, 5595, 5760, 6705, 7095 mm
Belt width
50 mm
Weight
0,42 kg/m
Number of teeth
100, 120, 200, 250, 300, 400, 500, 127, 133, 167, 114, 50, 106, 186, 219, 233, 267, 283, 316, 333, 353, 373, 384, 420, 447, 473
Z min alternating bending E cable
25
Z min single bending standard cable
20
Ø min Flexion simple câble standard
100 mm
Z min alternating bending standard cable
30
Ø min alternée simple câble standard
150 mm
Z min single bending E cable
15
Ø min Flexion simple câble E
70 mm
Ø min alternée simple câble E
120 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
120 mm
Z min alternating bending stainless steel cable
35
Ø min alternée simple câble Inox
180 mm
