BINDER custom 100TK5K6 BFX

BRECOFLEX® Self-guiding belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® Self-guiding belt
Applications
Self-guided precision application

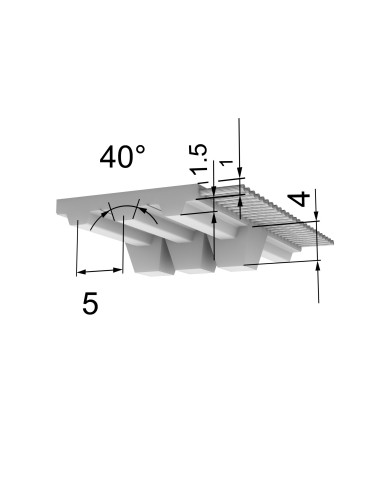

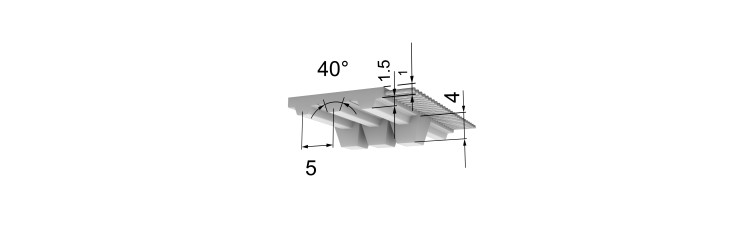

Profile / Pitch
TK5
Profile
TK
Pitch
5
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Guide profile
K6
Winding
wire
P max
≤5 kW
Steel tension member permissible force FN
3930 N
Stainless steel member permissible force FN
2990 N
N max
10000 tr/min
V max
80 m/s
Minimum length
≥720 mm
Standard belt lengths
720, 800, 920, 1040, 1600, 2000, 4000, 1400, 2240, 2800, 700, 755, 840, 860, 900, 1500, 1800, 750, 780, 990, 1075, 1100, 1215, 1380, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300, 6700, 75
Belt width
100 mm
Weight
0,232 kg/m
Number of teeth
150, 160, 180, 220, 300, 400, 500, 170, 280, 151, 168, 172, 163, 144, 156, 184, 198, 215, 243, 276, 320, 340, 360, 380, 424, 448, 472, 530, 560, 600, 630, 670, 710, 750, 800, 850, 900, 950, 1000, 1060, 1120, 1200, 1260, 1340, 1420, 1500, 182, 189, 208, 23
Z min alternating bending E cable
25
Z min single bending standard cable
25
Ø min Flexion simple câble standard
40 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
60 mm
Z min single bending E cable
25
Ø min Flexion simple câble E
40 mm
Ø min alternée simple câble E
60 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
40 mm
Z min alternating bending stainless steel cable
36
Ø min alternée simple câble Inox
60 mm
