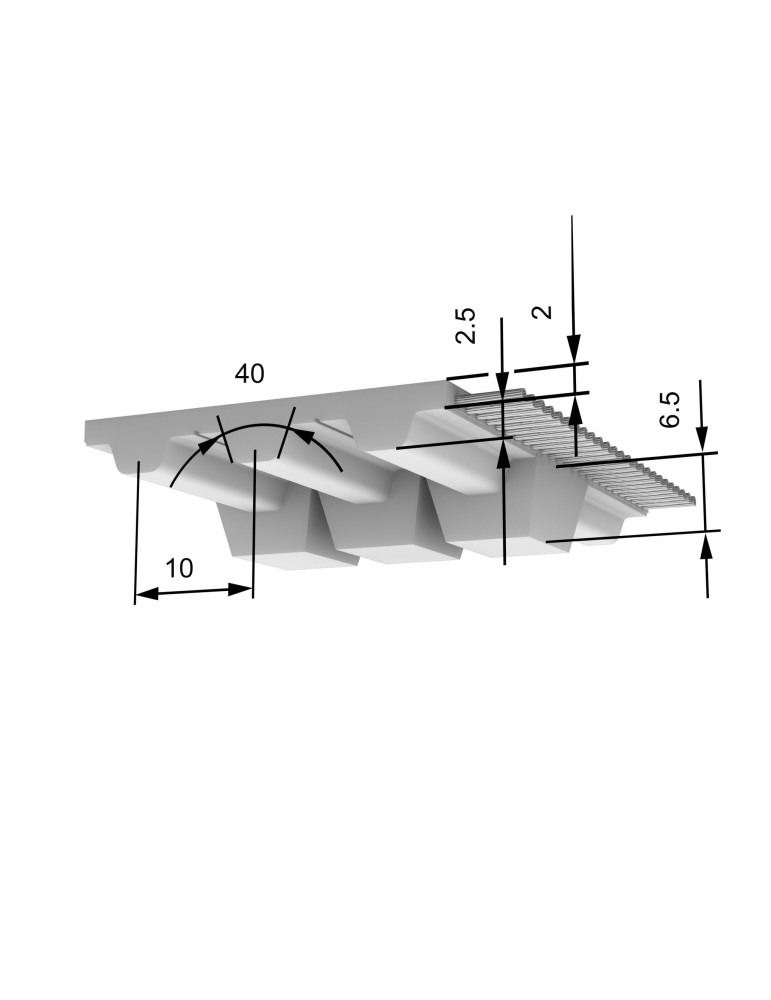

BINDER custom 50 TK10K13 BFX

BRECOFLEX® Self-guiding belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® Self-guiding belt
Applications
Self-guided precision application
Profile / Pitch
T10
Profile
T
Pitch
10
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Guide profile
K13
Winding
wire
P max
≤30 kW
Steel tension member permissible force FN
3800 N
Stainless steel member permissible force FN
3040 N
N max
10000 tr/min
V max
60 m/s
Minimum length
≥1200 mm
Standard belt lengths
4000, 1610, 1750, 1960, 2800, 1500, 2360, 2500, 2650, 3000, 3150, 3350, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 1210, 8000, 9000, 2250, 1560, 1780, 1880, 3100 mm
Belt width
50 mm
Weight
0,283 kg/m
Number of teeth
150, 250, 300, 315, 400, 450, 500, 280, 178, 225, 47, 156, 175, 530, 560, 600, 630, 670, 710, 750, 800, 900, 121, 425, 161, 188, 196, 136, 265, 310, 335, 375
Z min alternating bending E cable
25
Z min single bending standard cable
25
Ø min Flexion simple câble standard
80 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
Z min single bending E cable
25
Ø min Flexion simple câble E
80 mm
Ø min alternée simple câble E
120 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
80 mm
Z min alternating bending stainless steel cable
40
Ø min alternée simple câble Inox
130 mm
