BINDER custom 100 ATK10K6 BFX Power belts

BRECOFLEX® Self-guiding belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER custom 100 ATK10K6 BFX

BRECOFLEX® Self-guiding belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® Self-guiding belt
Applications
Self-guided precision application

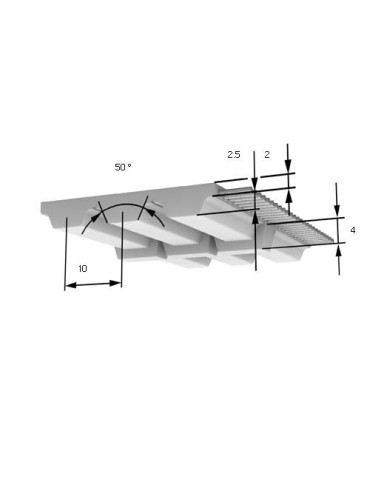

Profile / Pitch
ATK10
Profile
ATK
Pitch
10
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Guide profile
K6
Winding
wire
P max
≤70 kW
Steel tension member permissible force FN
16000 N
Stainless steel member permissible force FN
11520 N
N max
10000 tr/min
V max
60 m/s
Minimum length
≥720 mm
Standard belt lengths
1600, 2000, 4000, 2240, 2800, 500, 1500, 1800, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 8000, 9000 mm
Belt width
100 mm
Weight
0,581 kg/m
Number of teeth
150, 160, 180, 200, 224, 250, 300, 315, 355, 400, 450, 500, 170, 190, 236, 280, 530, 560, 600, 630, 710, 750, 800, 900, 425, 475, 265, 335, 375, 212, 677
Z min alternating bending E cable
20
Z min single bending standard cable
20
Ø min Flexion simple câble standard
80 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
Z min single bending E cable
18
Ø min Flexion simple câble E
60 mm
Ø min alternée simple câble E
80 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
80 mm
Z min alternating bending stainless steel cable
40
Ø min alternée simple câble Inox
120 mm
