BINDER custom 50 ATS15 DL BFX

High power BRECOFLEX® belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
High power BRECOFLEX® belt
Applications
High performance application

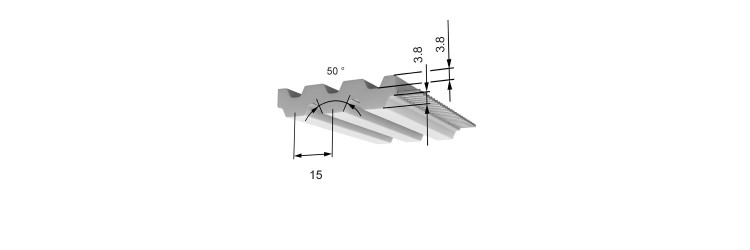

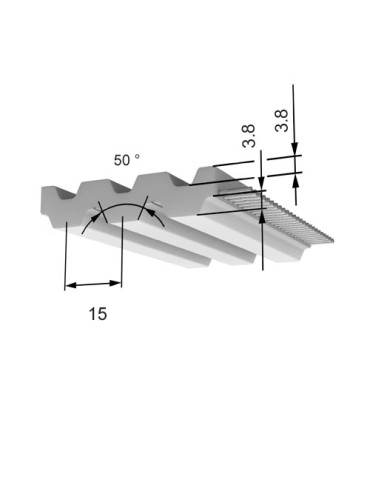

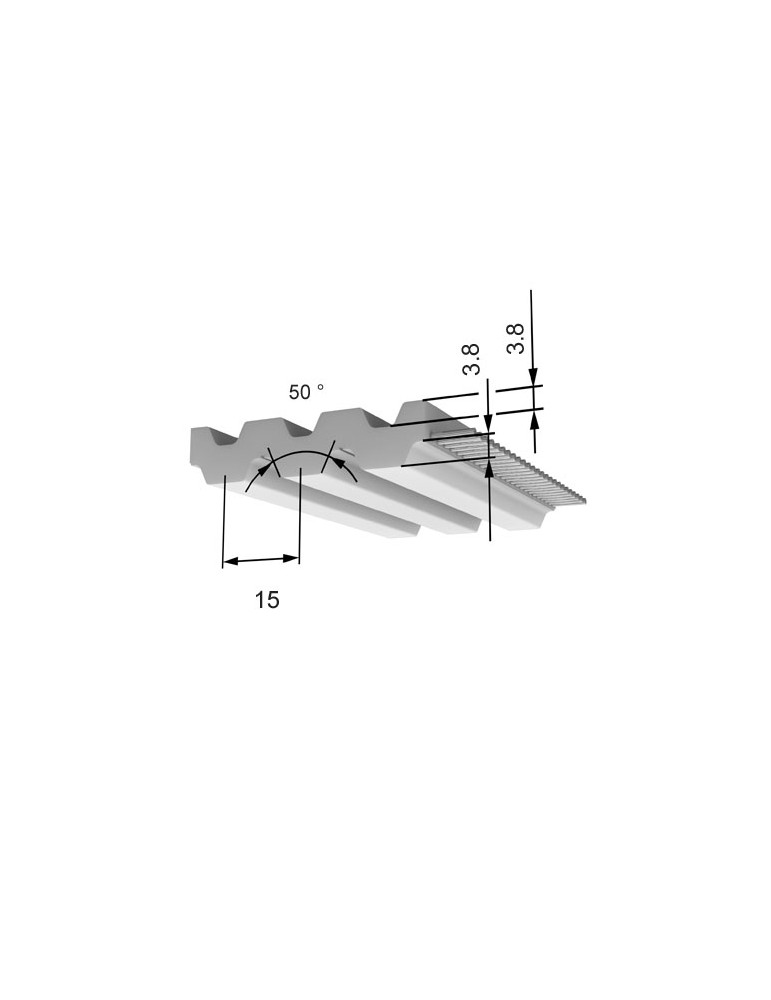

Profile / Pitch
15,00 ATS
Profile
ATS
Pitch
15
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
Minimum length
≥1500 mm
Standard belt lengths
1500, 1800, 3000, 3750, 4500, 6000, 6300, 7500, 1590, 1710, 1905, 1995, 2250, 2505, 2790, 3285, 3495, 4005, 4245, 4740, 4995, 5295, 5595, 6705, 7095, 5790 mm
Belt width
50 mm
Weight
0,589 kg/m
Number of teeth
100, 120, 150, 200, 250, 300, 400, 500, 127, 133, 167, 144, 106, 186, 219, 233, 267, 283, 316, 333, 353, 373, 384, 420, 447, 473
P max
≤ 160 kW
Steel tension member permissible force FN
12915 N
Stainless steel member permissible force FN
10290 N
N max
8000 tr/min
V max
48 m/s
Z min single bending standard cable
40
Ø min Flexion simple câble standard
250 mm
Z min alternating bending standard cable
40
Ø min alternée simple câble standard
250 mm
Z min single bending stainless steel cable
60
Ø min Flexion simple câble Inox
300 mm
Z min alternating bending stainless steel cable
60
Ø min alternée simple câble Inox
300 mm
