BINDER custom 75 SFAT20 BFX

High power BRECOFLEX® belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
High power BRECOFLEX® belt
Applications
High performance application

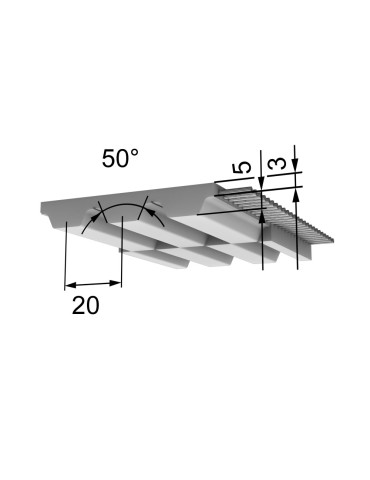

Profile / Pitch
SFAT20
Profile
SFAT
Pitch
20
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤200 kW
Steel tension member permissible force FN
15600 N
Stainless steel member permissible force FN
12480 N
N max
6500 tr/min
V max
40 m/s
Minimum length
≥1500 mm
Standard belt lengths
1600, 2000, 4000, 2240, 2800, 1500, 1800, 1700, 1900, 2500, 3000, 4500, 5000, 5600, 6000, 6700, 7100, 7500, 3560, 3760 mm
Belt width
75 mm
Weight
0,72 kg/m
Number of teeth
80, 90, 100, 112, 125, 140, 150, 200, 250, 300, 355, 85, 280, 75, 95, 178, 225, 188, 335, 375
Z min alternating bending E cable
22
Z min single bending standard cable
18
Ø min Flexion simple câble standard
120 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
180 mm
Z min single bending E cable
15
Ø min Flexion simple câble E
100 mm
Ø min alternée simple câble E
150 mm
Z min single bending stainless steel cable
32
Ø min Flexion simple câble Inox
200 mm
Z min alternating bending stainless steel cable
40
Ø min alternée simple câble Inox
300 mm
