BINDER custom 16 ATP10 DL BFX

High power BRECOFLEX® belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
High power BRECOFLEX® belt
Applications
High performance application

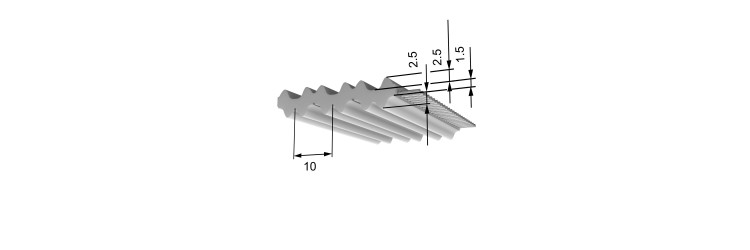

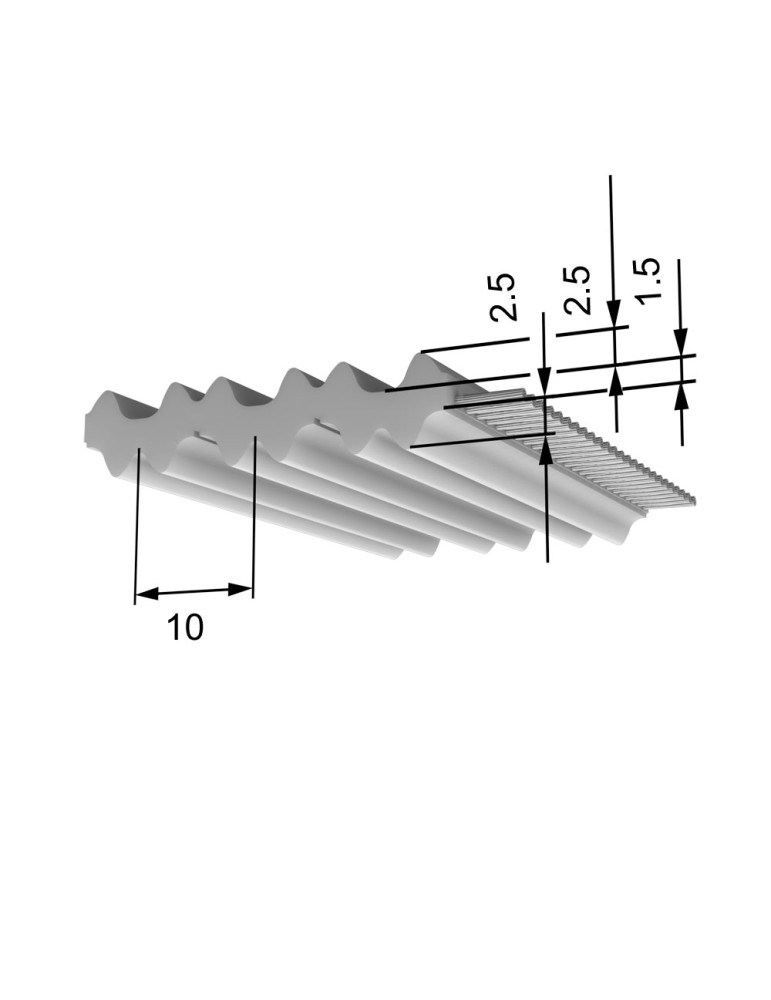

Profile / Pitch
ATP10
Profile
ATP
Pitch
10
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤ 100 kW
Steel tension member permissible force FN
2000 N
N max
10000 tr/min
V max
60 m/s
Minimum length
≥1100 mm
Standard belt lengths
1600, 2000, 4000, 2240, 2800, 1500, 1800, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300 mm
Belt width
16 mm
Weight
0,097 kg/m
Number of teeth
150, 160, 180, 200, 224, 250, 300, 315, 355, 400, 450, 500, 170, 190, 236, 280, 530, 560, 600, 630, 425, 475, 265, 335, 375, 212
Z min alternating bending E cable
20
Z min single bending standard cable
25
Ø min Flexion simple câble standard
80 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
Z min single bending E cable
20
Ø min Flexion simple câble E
60 mm
Ø min alternée simple câble E
100 mm
