BINDER custom 150 ATP15 BFX Power belts
High power BRECOFLEX® belt
High power BRECOFLEX® belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- High power BRECOFLEX® belt
- Applications
- High performance application

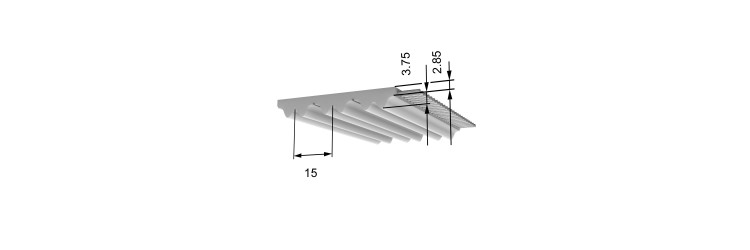

- Profile / Pitch
- ATP15
- Profile
- ATP
- Pitch
- 15
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- Minimum length
- ≥1500 mm
- Standard belt lengths
- 2520, 2100, 3000, 4500, 6000, 2250, 1740, 1965, 2385, 2670, 2805, 3225, 3450, 3675, 3900, 4125, 4875, 5250, 5625 mm
- Belt width
- 150 mm
- Weight
- 1,2 kg/m
- Number of teeth
- 140, 150, 200, 300, 400, 275, 168, 178, 350, 215, 375, 116, 131, 159, 187, 30, 245, 260, 325
- P max
- ≤200 kW
- Steel tension member permissible force FN
- 36450 N
- N max
- 10000 tr/min
- V max
- 50 m/s
- Z min alternating bending E cable
- 25
- Z min single bending standard cable
- 20
- Ø min Flexion simple câble standard
- 100 mm
- Z min alternating bending standard cable
- 30
- Ø min alternée simple câble standard
- 160 mm
- Z min single bending E cable
- 18
- Ø min Flexion simple câble E
- 80 mm
- Ø min alternée simple câble E
- 120 mm
