BINDER custom 100 ATP15 DL BFX Power belts

High power BRECOFLEX® belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER custom 100 ATP15 DL BFX

High power BRECOFLEX® belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
High power BRECOFLEX® belt
Applications
High performance application

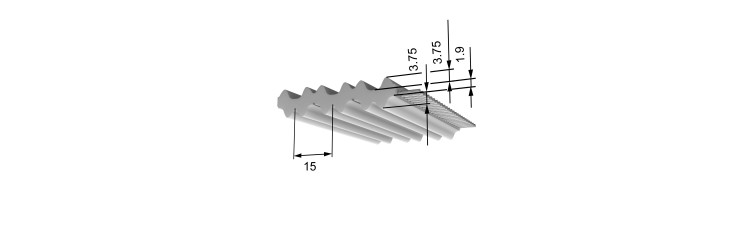

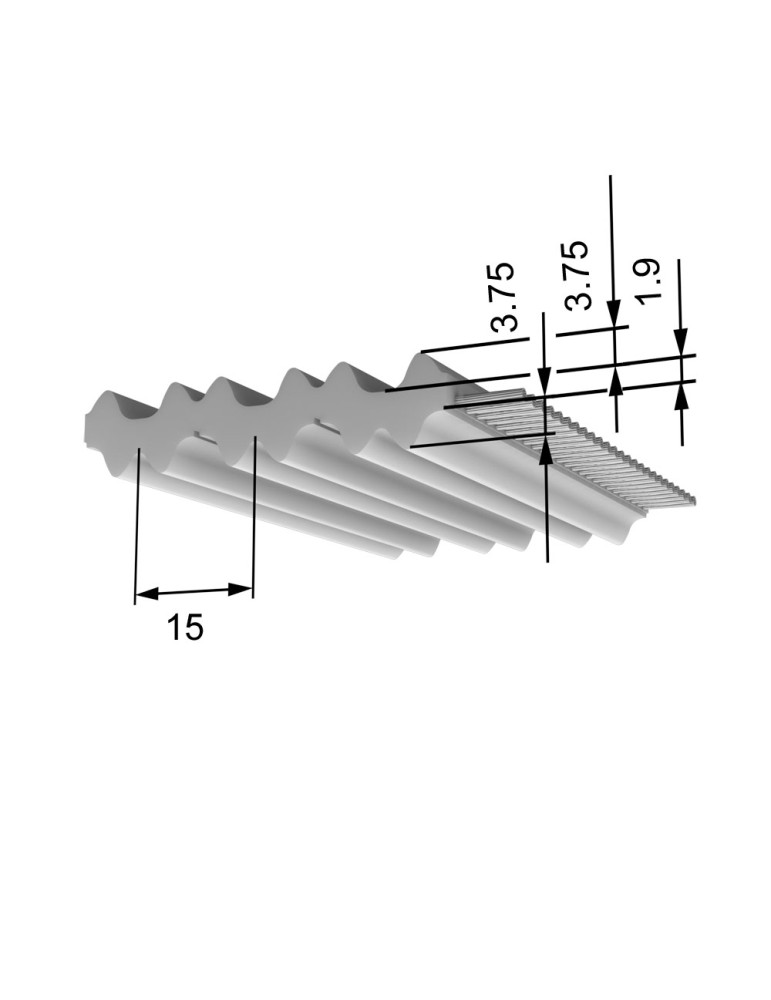

Profile / Pitch
ATP15
Profile
ATP
Pitch
15
Double toothed belt
DL
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤200 kW
Steel tension member permissible force FN
23850 N
N max
10000 tr/min
V max
50 m/s
Minimum length
≥1500 mm
Standard belt lengths
2520, 2100, 3000, 4500, 6000, 2250, 1740, 1965, 2385, 2670, 2805, 3225, 3450, 3675, 3900, 4125, 4875, 5250, 5625 mm
Belt width
100 mm
Weight
0,876 kg/m
Number of teeth
140, 150, 200, 300, 400, 275, 168, 178, 350, 215, 375, 116, 131, 159, 187, 30, 245, 260, 325
Z min alternating bending E cable
25
Z min single bending standard cable
25
Ø min Flexion simple câble standard
120 mm
Z min alternating bending standard cable
30
Ø min alternée simple câble standard
160 mm
Z min single bending E cable
20
Ø min Flexion simple câble E
100 mm
Ø min alternée simple câble E
140 mm
