BINDER custom 25 AT10 BFX Power belts

BRECOFLEX® standard belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER custom 25 AT10 BFX

BRECOFLEX® standard belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® standard belt
Applications
Precision application

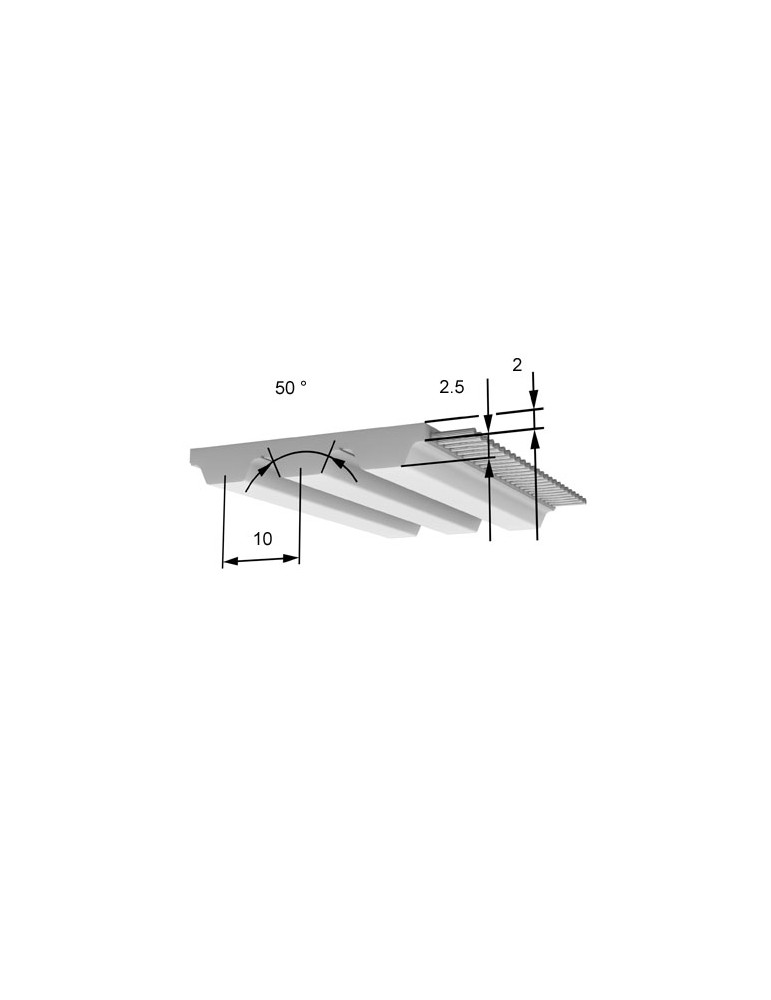

Profile / Pitch
AT10
Profile
AT
Pitch
10
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤70 kW
Steel tension member permissible force FN
3500 N
Stainless steel member permissible force FN
2520 N
N max
10000 tr/min
V max
60 m/s
Minimum length
≥720 mm
Standard belt lengths
720, 800, 920, 960, 1600, 2000, 4000, 1400, 2240, 2800, 500, 630, 700, 840, 890, 1500, 560, 880, 1800, 780, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 810, 850, 970, 980, 1
Belt width
25 mm
Weight
0,158 kg/m
Number of teeth
80, 115, 125, 140, 150, 160, 180, 200, 224, 250, 300, 315, 355, 400, 450, 500, 85, 170, 190, 236, 280, 40, 53, 66, 70, 81, 92, 124, 78, 97, 98, 50, 530, 560, 600, 630, 710, 750, 800, 900, 72, 84, 88, 89, 96, 101, 108, 121, 132, 425, 475, 265, 335, 375, 21
Z min alternating bending E cable
20
Z min single bending standard cable
15
Ø min Flexion simple câble standard
50 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
Z min single bending E cable
12
Ø min Flexion simple câble E
50 mm
Ø min alternée simple câble E
80 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
80 mm
Z min alternating bending stainless steel cable
40
Ø min alternée simple câble Inox
120 mm
