BINDER custom 12 AT3 BFX

BRECOFLEX® standard belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® standard belt
Applications
Precision application

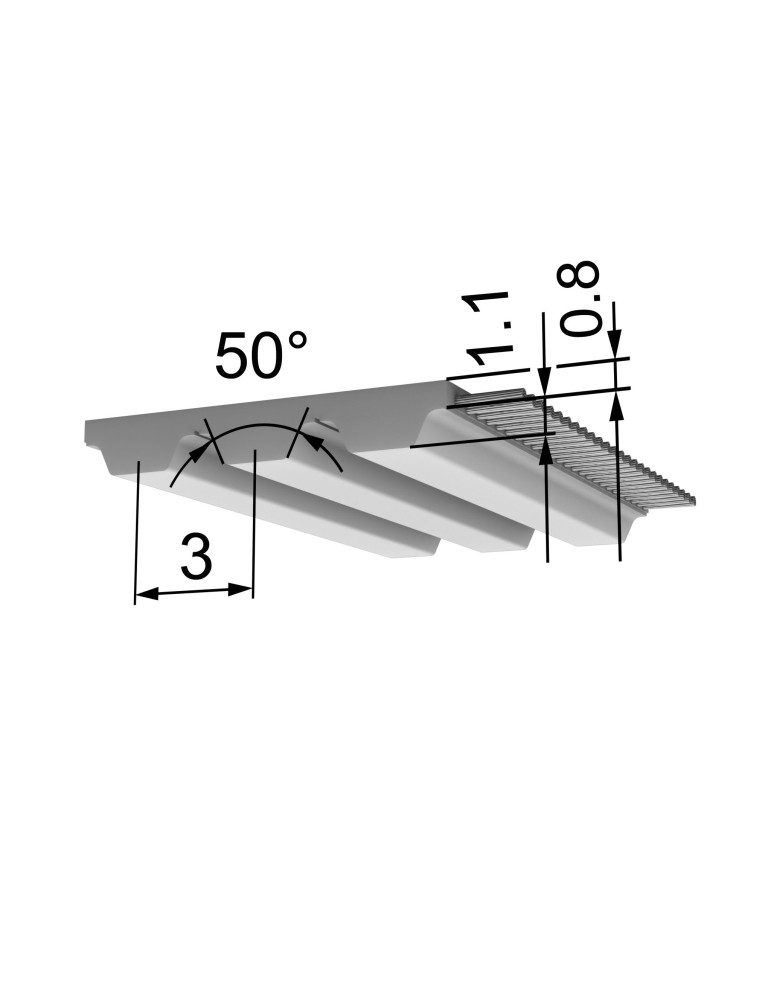

Profile / Pitch
AT3
Profile
AT
Pitch
3
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤5 kW
Steel tension member permissible force FN
480 N
Stainless steel member permissible force FN
460 N
N max
20000 tr/min
V max
80 m/s
Minimum length
≥720 mm
Standard belt lengths
720, 1215, 819, 918, 1017, 1116, 1314, 1413, 1512, 1611, 1701 mm
Belt width
12 mm
Weight
0,028 kg/m
Number of teeth
240, 373, 273, 306, 339, 405, 438, 471, 504, 537, 575
Z min alternating bending E cable
20
Z min single bending E cable
15
Ø min Flexion simple câble E
20 mm
Ø min alternée simple câble E
20 mm
Z min single bending stainless steel cable
20
Ø min Flexion simple câble Inox
30 mm
Z min alternating bending stainless steel cable
30
Ø min alternée simple câble Inox
40 mm
