BINDER custom 25 AT20 DL BFX Power belts
BRECOFLEX® standard belt
BRECOFLEX® standard belt
BINDER custom 25 AT20 DL BFX: this belt is suitable for applications requiring precision synchronization. With a wide variety of steps / profiles that can adapt to all kinematics and constraints with a wide range of options. It can be made to the desired length and made with double teeth.
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® standard belt
- Applications
- Precision application

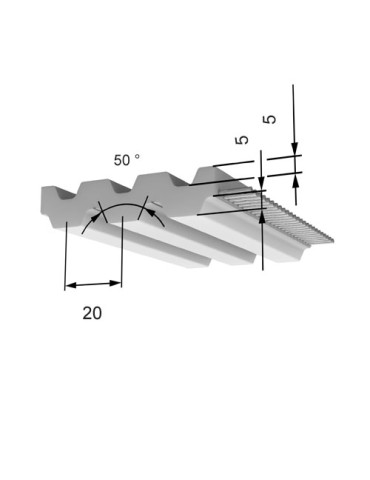

- Profile / Pitch
- AT20
- Profile
- AT
- Pitch
- 20
- Double toothed belt
- DL
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- Minimum length
- ≥1500 mm
- Standard belt lengths
- 1600, 2000, 4000, 2240, 2660, 2800, 1500, 1800, 1700, 1900, 2120, 2360, 2500, 3000, 4500, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 8000, 9000, 3560, 3760, 3160, 3360, 4260, 4760, 8500 mm
- Belt width
- 25 mm
- Weight
- 0,285 kg/m
- Number of teeth
- 80, 90, 100, 112, 125, 140, 150, 200, 250, 300, 315, 355, 400, 450, 85, 280, 75, 95, 133, 168, 178, 225, 425, 106, 188, 265, 335, 375, 118, 158, 213, 238
- P max
- ≤200 kW
- Steel tension member permissible force FN
- 4600 N
- Stainless steel member permissible force FN
- 3750 N
- N max
- 6500 tr/min
- V max
- 40 m/s
- Product range
- BRECOFLEX® standard belt
- Z min alternating bending E cable
- 20
- Z min single bending standard cable
- 25
- Ø min Flexion simple câble standard
- 180 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 180 mm
- Z min single bending E cable
- 20
- Ø min Flexion simple câble E
- 160 mm
- Ø min alternée simple câble E
- 160 mm
- Z min single bending stainless steel cable
- 60
- Ø min Flexion simple câble Inox
- 380 mm
- Z min alternating bending stainless steel cable
- 40
- Ø min alternée simple câble Inox
- 300 mm
