BINDER custom 100 AT20 DL BFX

BRECOFLEX® standard belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Product range power belts
BRECOFLEX® standard belt
Applications
Precision application

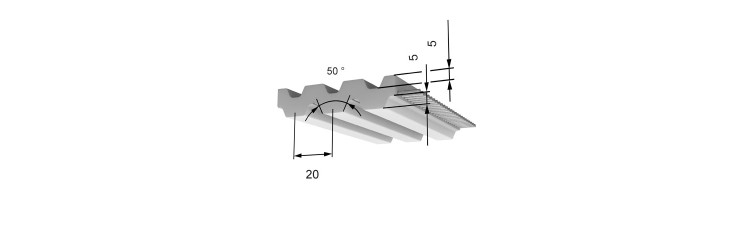

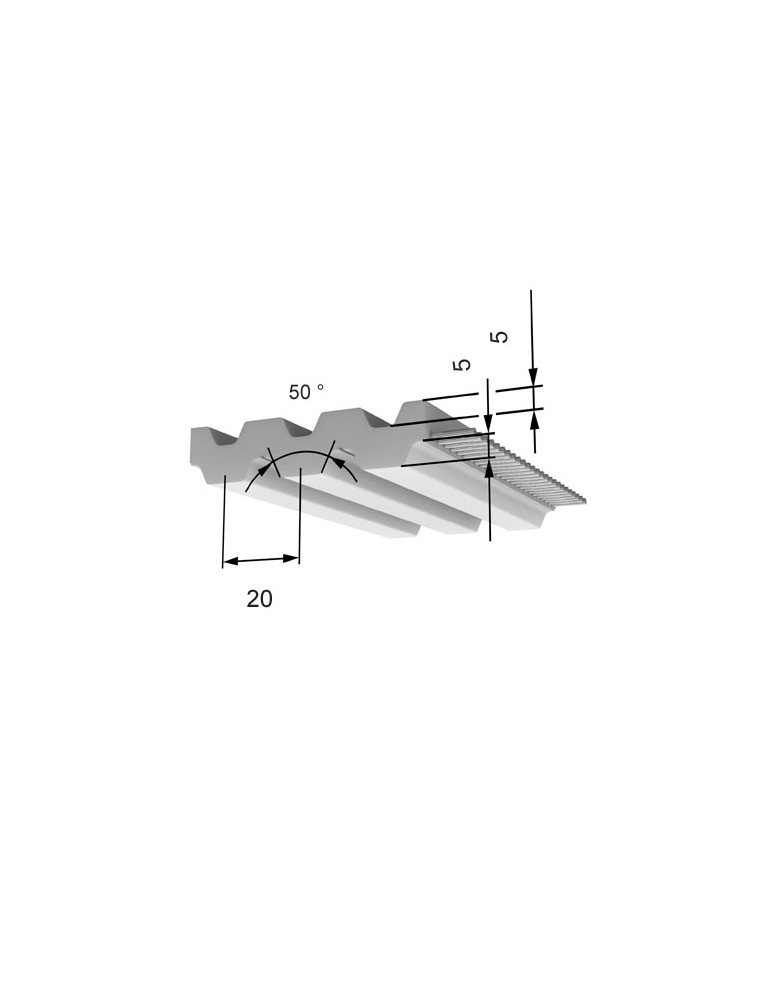

Profile / Pitch
AT20
Profile
AT
Pitch
20
Double toothed belt
DL
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
PU Material stainless steel tension member
TPU AU1 translucent
Shore hardness stainless steel tension member belt
92 ShA
Temperature range of stainless steel tension member belt
0 à 80 °C
Winding
wire
P max
≤200 kW
Steel tension member permissible force FN
21200 N
Stainless steel member permissible force FN
16960 N
N max
6500 tr/min
V max
40 m/s
Minimum length
≥1500 mm
Standard belt lengths
1600, 2000, 4000, 2240, 2660, 2800, 1500, 1800, 1700, 1900, 2120, 2360, 2500, 3000, 4500, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 8000, 9000, 3560, 3760, 3160, 3360, 4260, 4760, 8500 mm
Belt width
100 mm
Weight
1,14 kg/m
Number of teeth
80, 90, 100, 112, 125, 140, 150, 200, 250, 300, 315, 355, 400, 450, 85, 280, 75, 95, 133, 168, 178, 225, 425, 106, 188, 265, 335, 375, 118, 158, 213, 238
Z min alternating bending E cable
20
Z min single bending standard cable
25
Ø min Flexion simple câble standard
180 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
180 mm
Z min single bending E cable
20
Ø min Flexion simple câble E
160 mm
Ø min alternée simple câble E
160 mm
Z min single bending stainless steel cable
60
Ø min Flexion simple câble Inox
380 mm
Z min alternating bending stainless steel cable
40
Ø min alternée simple câble Inox
300 mm
