BINDER premium 75 AT10 MOVE

BRECOFLEXmove ® belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account

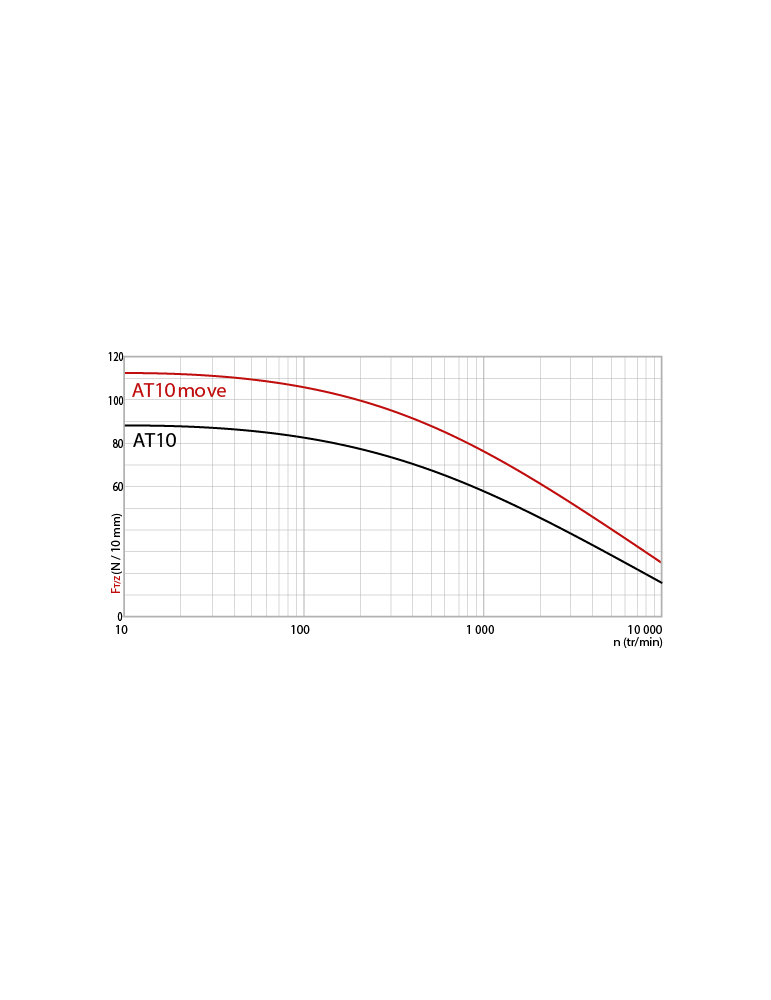

Tangential force transmissible by the teeth
Range
BINDERpremium
Product range power belts
BRECOFLEXmove ® belt
Applications
High performance application

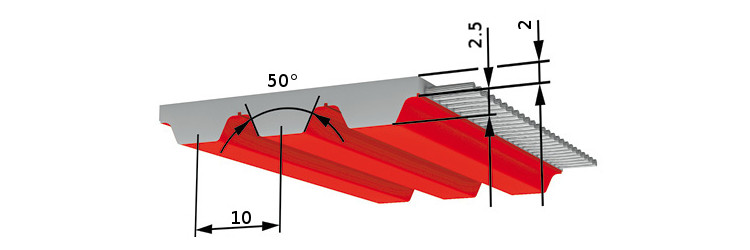

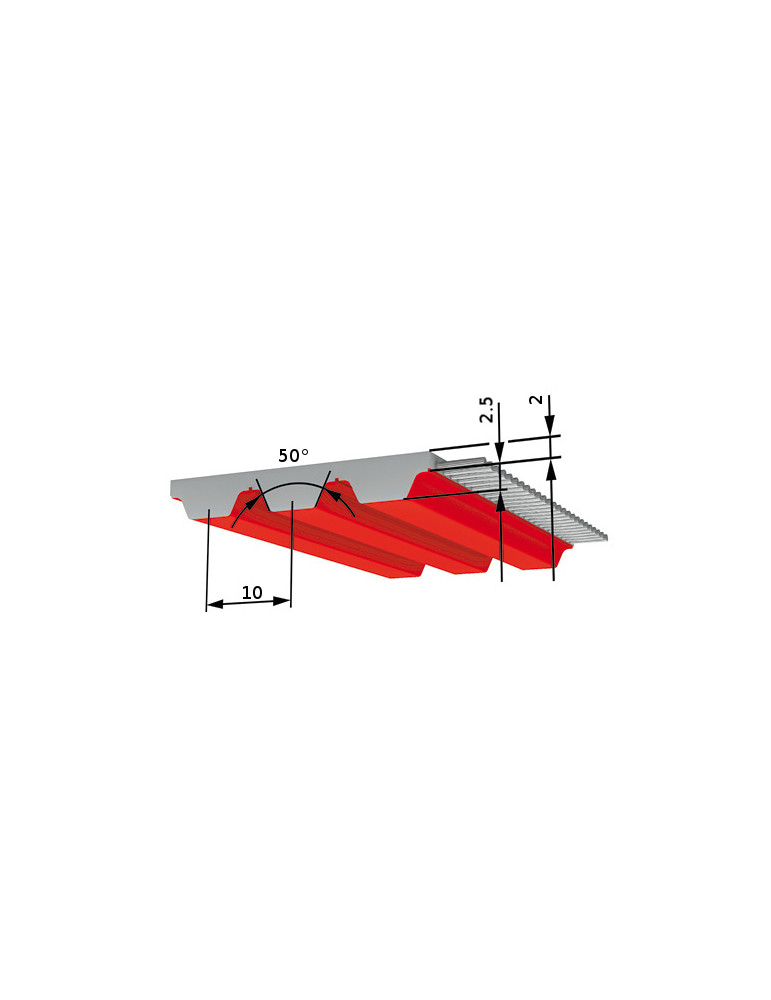

Profile / Pitch
AT10
Profile
AT
Pitch
10
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
Winding
wire
Minimum length
≥720 mm
Standard belt lengths
1600, 2000, 4000, 1400, 2240, 2800, 1500, 1800, 1700, 1900, 2120, 2360, 2500, 2650, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 8000, 9000, 9500, 10000 mm
Belt width
75 mm
Weight
0,52 kg/m
Number of teeth
140, 150, 160, 180, 200, 224, 250, 300, 315, 355, 400, 450, 500, 170, 190, 236, 280, 530, 560, 600, 630, 670, 710, 750, 800, 900, 950, 1000, 425, 475, 265, 335, 375, 212
P max
≤90 kW
Steel tension member permissible force FN
22200 N
N max
10000 tr/min
V max
60 m/s
Z min single bending standard cable
18
Ø min Flexion simple câble standard
50 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
