BINDER premium 50 AT8 MOVE Power belts
BRECOFLEXmove ® belt
BRECOFLEXmove ® belt
BINDER premium 50 AT8 MOVE: this new generation belt available in the AT10 profile is specifically designed for high precision, high dynamic effort applications. It has a high stiffness to reduce the width of the transmission and improved slip thanks to the PTFE fabric on the tooth side. The belt can be made to the desired length.
Power belts
- Range
- BINDERpremium
- Product range power belts
- BRECOFLEXmove ® belt
- Applications
- High performance application
- Minimum length
- ≥720 mm
- Standard belt lengths
- 720, 776, 784, 800, 880, 896, 912, 920, 960, 992, 1008, 1040, 1120, 1160, 1200, 1224, 1280, 1304, 1328, 1360, 1424, 1440, 1520, 1600, 1760, 1792, 1800, 2000, 2200, 2248, 2400, 2520, 2600, 2800, 2840, 3008, 3200, 3408, 3600, 3808, 3998 mm
- Belt width
- 50 mm
- Weight
- 0,339 kg/m
- Number of teeth
- 90, 97, 98, 100, 110, 112, 114, 115, 120, 124, 126, 130, 140, 145, 150, 153, 160, 163, 166, 170, 178, 180, 190, 200, 220, 224, 225, 250, 275, 281, 300, 315, 325, 350, 355, 376, 400, 426, 450, 476, 502

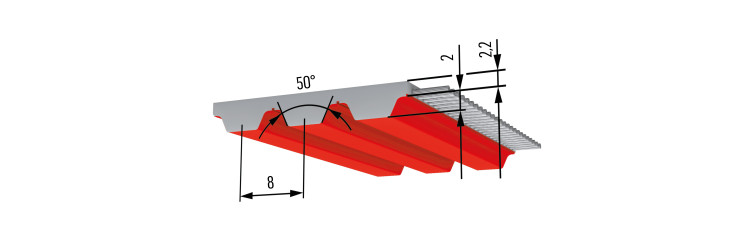

- Profile / Pitch
- AT8
- Profile
- AT
- Pitch
- 8
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- Winding
- wire
- Product range
- BRECOFLEXmove ® belt
- P max
- ≤80 kW
- Steel tension member permissible force FN
- 13470 N

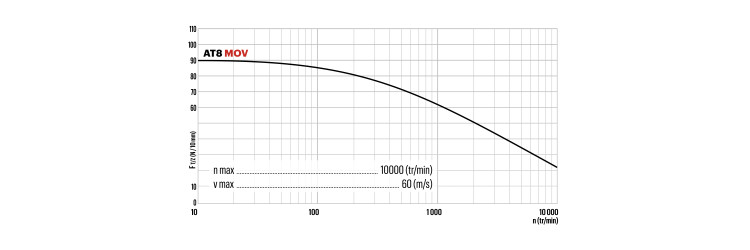

- N max
- 10000 tr/min
- V max
- 60 m/s
- Z min single bending standard cable
- 22
- Ø min Flexion simple câble standard
- 60 mm
- Z min alternating bending standard cable
- 32
- Ø min alternée simple câble standard
- 120 mm
