BINDER premium 100 AT8 MOVE

BINDER premium 100 AT8 MOVE


BRECOFLEXmove ® belt

Power belts
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

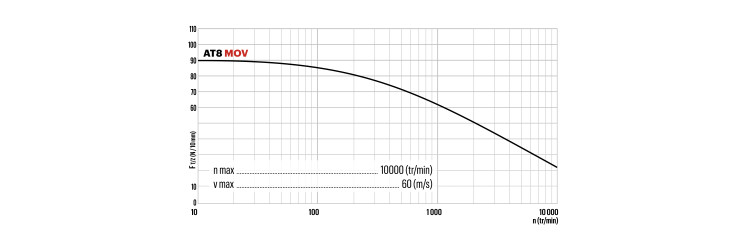

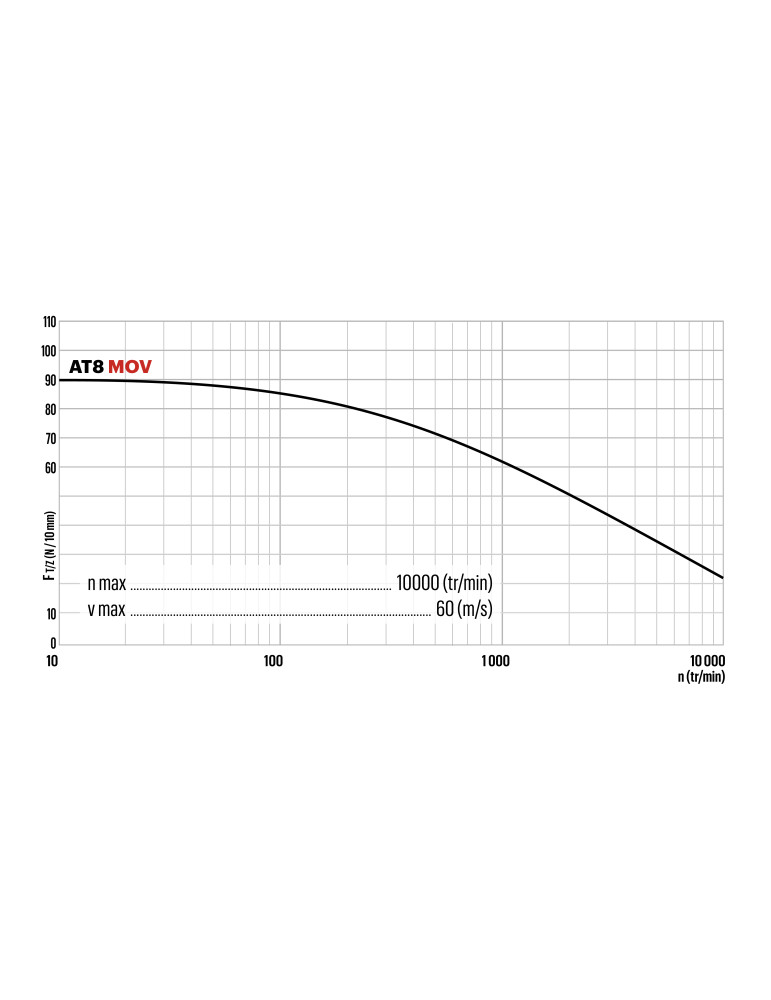

Tangential force transmissible by the teeth
Range
BINDERpremium
Product range power belts
BRECOFLEXmove ® belt
Applications
High performance application

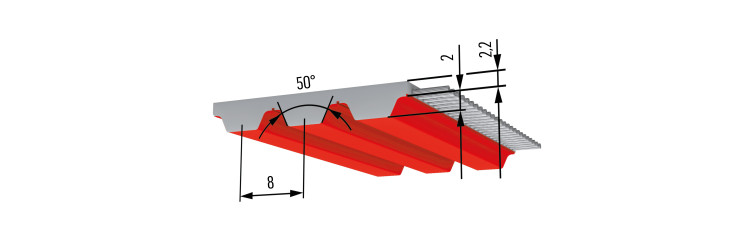

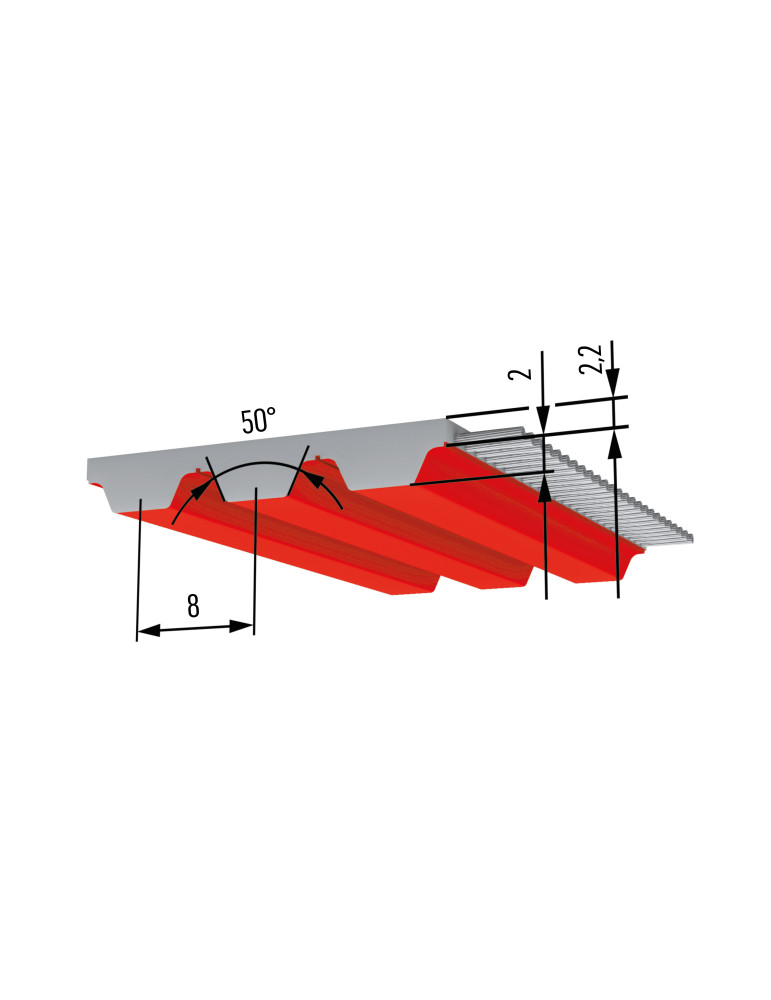

Profile / Pitch
AT8
Profile
AT
Pitch
8
PU Material steel tension member
White TPU ST5
Shore hardness steel tension member belt
92 ShA
Temperature range of steel tension member belt
0 à 80 °C
Winding
wire
Minimum length
≥720 mm
Standard belt lengths
720, 776, 784, 800, 880, 896, 912, 920, 960, 992, 1008, 1040, 1120, 1160, 1200, 1224, 1280, 1304, 1328, 1360, 1424, 1440, 1520, 1600, 1760, 1792, 1800, 2000, 2200, 2248, 2400, 2520, 2600, 2800, 2840, 3008, 3200, 3408, 3600, 3808, 4000 mm
Belt width
100 mm
Weight
0,678 kg/m
Number of teeth
90, 97, 98, 100, 110, 112, 114, 115, 120, 124, 126, 130, 140, 145, 150, 153, 160, 163, 166, 170, 178, 180, 190, 200, 220, 224, 225, 250, 275, 281, 300, 315, 325, 350, 355, 376, 400, 426, 450, 476, 504
P max
≤80 kW
Steel tension member permissible force FN
26940 N
N max
10000 tr/min
V max
60 m/s
Z min single bending standard cable
22
Ø min Flexion simple câble standard
60 mm
Z min alternating bending standard cable
32
Ø min alternée simple câble standard
120 mm
