BINDER access 25 ATP10 SYN Power belts
Synchroflex® high power belt
Synchroflex® high power belt
Write your review
BINDER access 25 ATP10 SYN: this high-profile belt is suitable for power applications requiring very good synchronization and no backlash. The belt is therefore produced from a molded sleeve integrally.
Power belts
- Range
- BINDERaccess
- Product range power belts
- Synchroflex® high power belt
- Applications
- High performance application

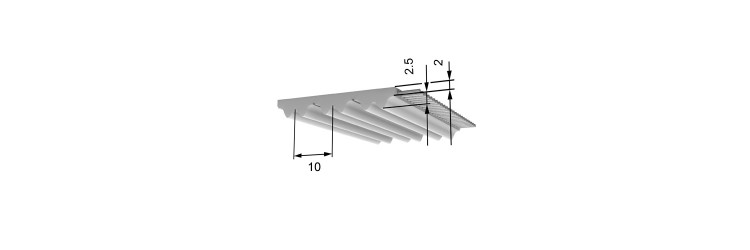

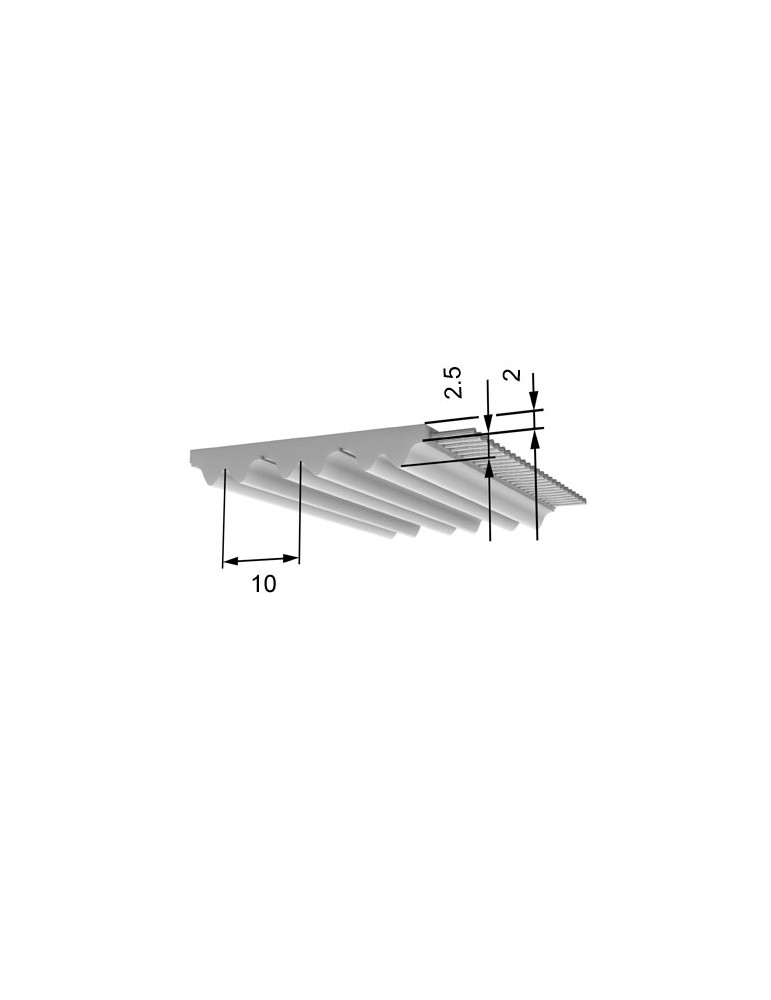

- Profile / Pitch
- ATP10
- Profile
- ATP
- Pitch
- 10
- PU Material steel tension member
- DEDU 8600
- Shore hardness steel tension member belt
- 88 ShA
- Temperature range of steel tension member belt
- -20 à 80 °C
- Winding
- wire
- Standard belt lengths
- 920, 1280, 1400, 630, 700, 840, 890, 1800, 780, 1010, 1080, 1150, 660, 1650 mm
- Belt width
- 25 mm
- Weight
- 0,15 kg/m
- Number of teeth
- 115, 140, 180, 66, 70, 92, 78, 165, 84, 89, 101, 108, 63, 128
- P max
- ≤ 100 kW
- Steel tension member permissible force FN
- 3500 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Product range
- Synchroflex® high power belt
- Z min alternating bending E cable
- 20
- Z min single bending standard cable
- 15
- Ø min Flexion simple câble standard
- 50 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 120 mm
- Z min single bending E cable
- 12
- Ø min Flexion simple câble E
- 50 mm
- Ø min alternée simple câble E
- 80 mm
