BINDER access 12 T2 SYN
BINDER access 12 T2 SYN
BINDER access 12 T2 SYN

BINDER access 12 T2 SYN


Synchroflex® micromechanical belt

BINDER access 12 T2 SYN: this belt is designed for low load transmissions in a small footprint. It is produced from a molded sleeve integrally.
Power belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

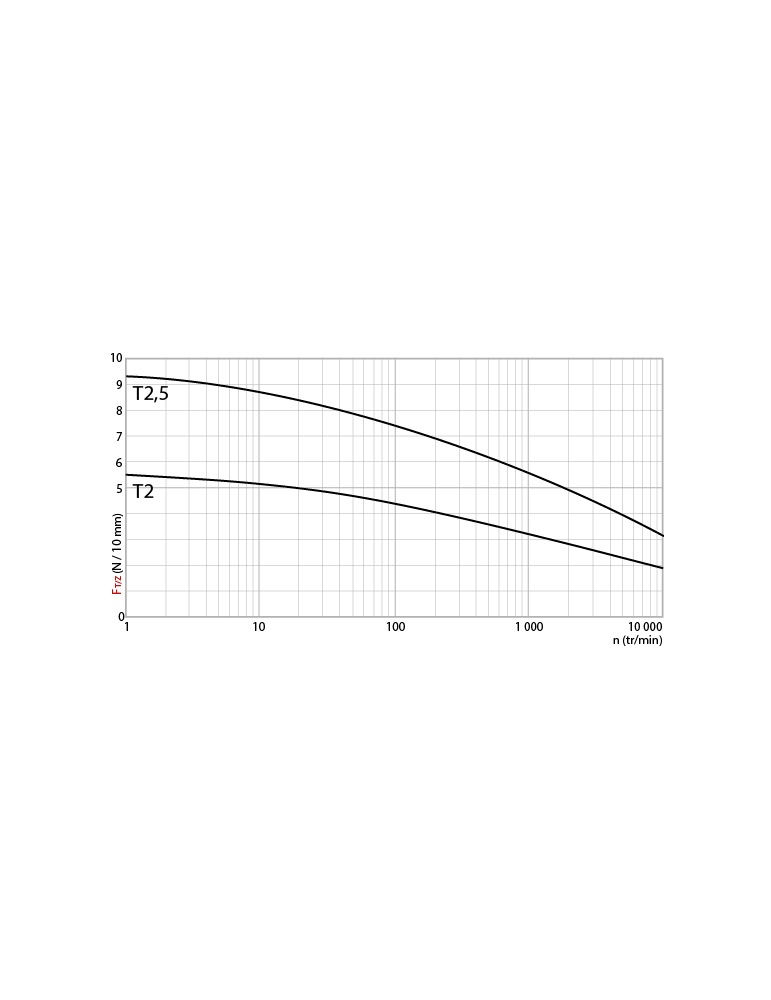

Tangential force transmissible by the teeth
Range
BINDERaccess
Product range power belts
Synchroflex® micromechanical belt
Applications
Micromechanical application

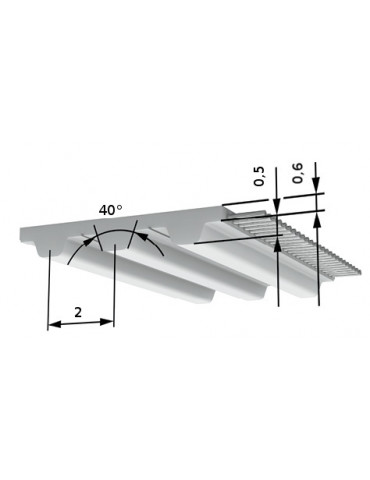

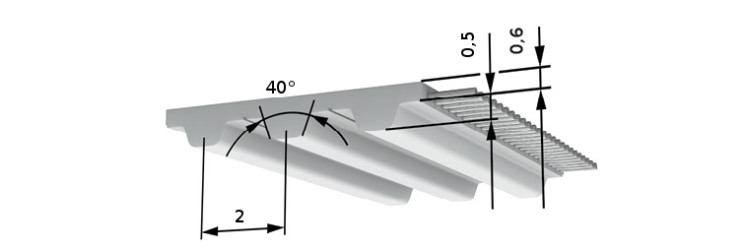

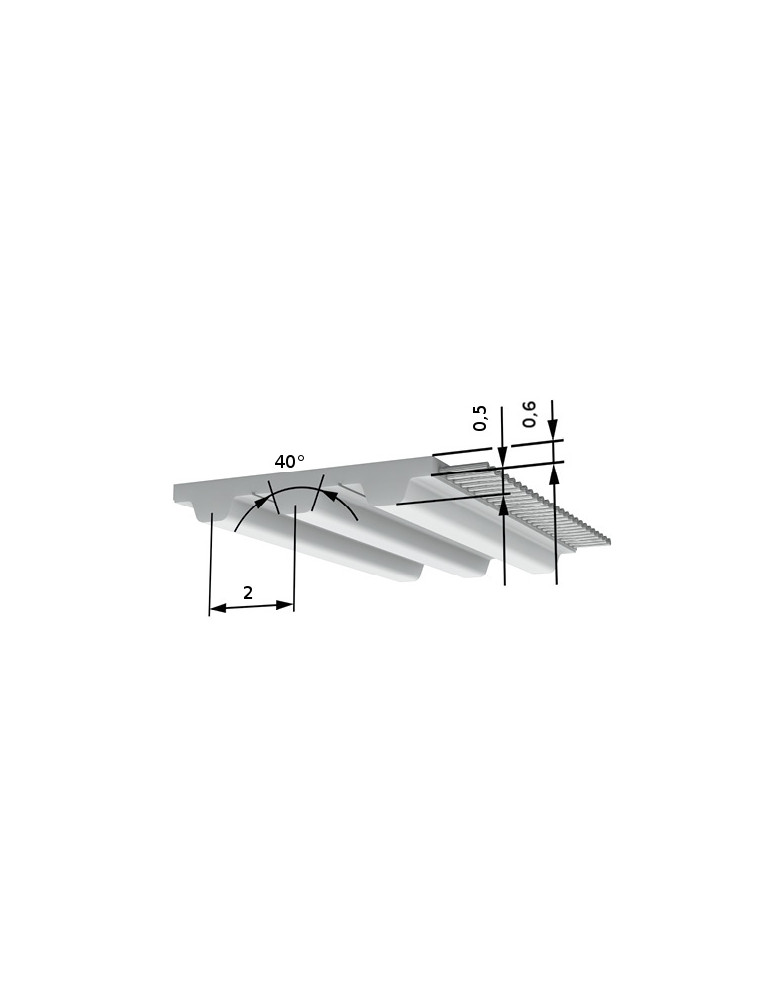

Profile / Pitch
T2
Profile
T
Pitch
2
PU Material steel tension member
DEDU 8600
Shore hardness steel tension member belt
88 ShA
Temperature range of steel tension member belt
-20 à 80 °C
Winding
wire
Standard belt lengths
200, 600, 710, 160, 280, 180, 68, 90, 108, 118, 120, 138, 140, 144, 150, 220, 240, 256, 262, 292, 320, 360 mm
Belt width
12 mm
Weight
0,013 kg/m
Number of teeth
80, 90, 100, 120, 140, 160, 180, 300, 355, 45, 59, 60, 70, 75, 110, 72, 146, 131, 54, 69, 128, 34
P max
≤0,5 kW
Steel tension member permissible force FN
140 N
N max
20000 tr/min
V max
80 m/s
Product range
Synchroflex® micromechanical belt
Z min single bending standard cable
10
Ø min Flexion simple câble standard
15 mm
Z min alternating bending standard cable
18
Ø min alternée simple câble standard
15 mm
