BINDER premium 50 AT3 GENIII Power belts

Synchroflex® GEN III belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER premium 50 AT3 GENIII

Synchroflex® GEN III belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERpremium
Product range power belts
Synchroflex® GEN III belt
Applications
High performance application

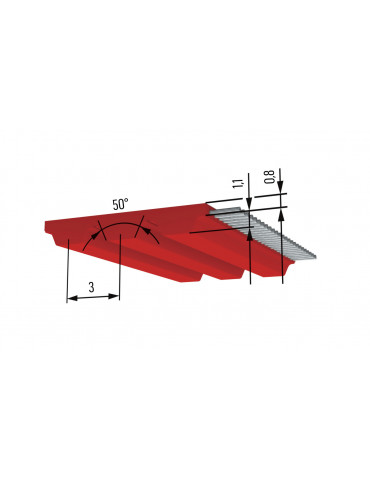

Profile / Pitch
AT3
Profile
AT
Pitch
3
PU Material steel tension member
DNHU 9333
Shore hardness steel tension member belt
93 ShA
Temperature range of steel tension member belt
-20 à 100 °C
Winding
wire
P max
≤ 6 kW
Steel tension member permissible force FN
3300 N
N max
20000 tr/min
V max
80 m/s
Standard belt lengths
300, 450, 600, 900, 270, 150, 201, 252, 267, 351, 399, 417, 501, 549, 639, 648, 714, 816, 1011 mm
Belt width
50 mm
Weight
0,13 kg/m
Number of teeth
90, 100, 150, 200, 300, 133, 167, 50, 84, 89, 139, 213, 238, 67, 117, 183, 216, 272, 337
Z min alternating bending E cable
20
Z min single bending E cable
15
Ø min Flexion simple câble E
20 mm
Ø min alternée simple câble E
20 mm
