BINDER premium 32 AT5 GENIII Power belts

Synchroflex® GEN III belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |
BINDER premium 32 AT5 GENIII

Synchroflex® GEN III belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERpremium
Product range power belts
Synchroflex® GEN III belt
Applications
High performance application

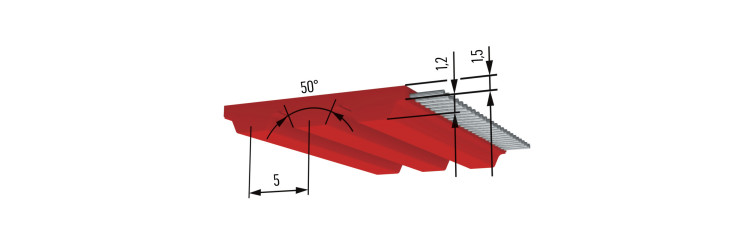

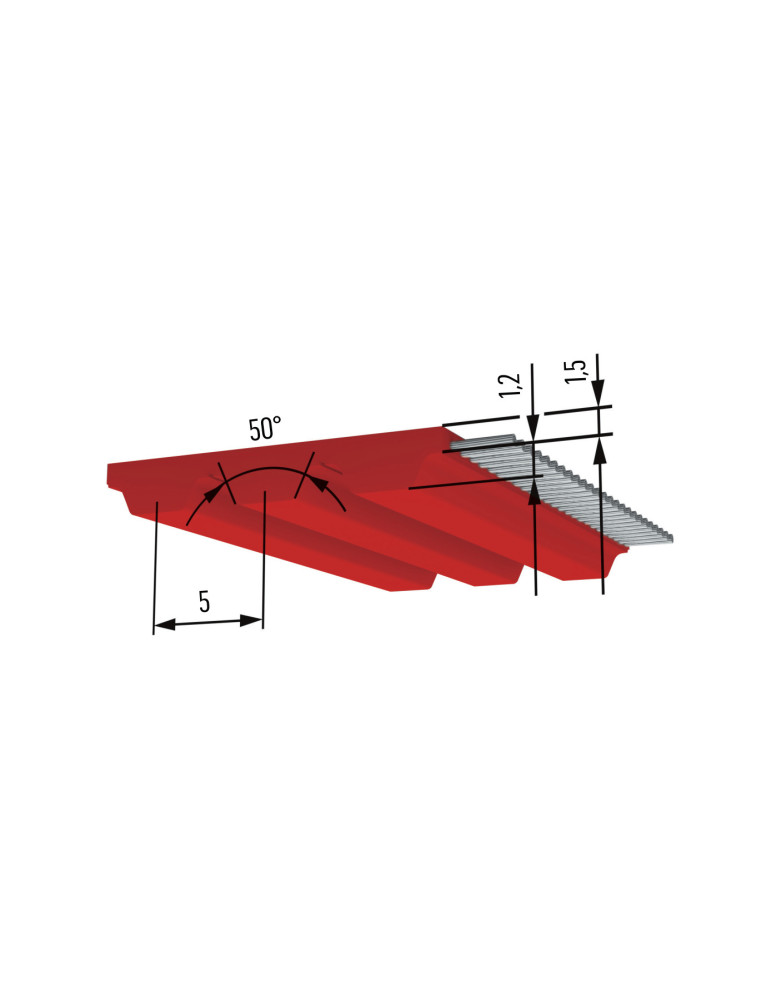

Profile / Pitch
AT5
Profile
AT
Pitch
5
PU Material steel tension member
DNHU 9333
Shore hardness steel tension member belt
93 ShA
Temperature range of steel tension member belt
-20 à 100 °C
Winding
wire
P max
≤ 18 kW
Steel tension member permissible force FN
2823 N
N max
10000 tr/min
V max
60 m/s
Standard belt lengths
720, 920, 2000, 1750, 225, 300, 330, 375, 450, 500, 525, 600, 620, 630, 710, 860, 900, 1050, 1125, 1500, 480, 750, 780, 825, 875, 975, 1230, 3800, 260, 280, 340, 390, 420, 455, 545, 610, 660, 690, 255, 490, 670 mm
Belt width
32 mm
Weight
0,115 kg/m
Number of teeth
90, 100, 120, 150, 180, 300, 400, 45, 60, 66, 75, 105, 124, 126, 142, 172, 210, 225, 52, 78, 98, 350, 144, 156, 165, 175, 184, 195, 246, 760, 84, 96, 132, 56, 68, 91, 109, 122, 138, 51, 134
Z min alternating bending E cable
20
Z min single bending E cable
15
Ø min Flexion simple câble E
25 mm
Ø min alternée simple câble E
60 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
40 mm
Z min alternating bending stainless steel cable
30
Ø min alternée simple câble Inox
70 mm
