BINDER premium 100 AT5 GENIII Power belts
Synchroflex® GEN III belt
Synchroflex® GEN III belt
Power belts
- Range
- BINDERpremium
- Product range power belts
- Synchroflex® GEN III belt
- Applications
- High performance application

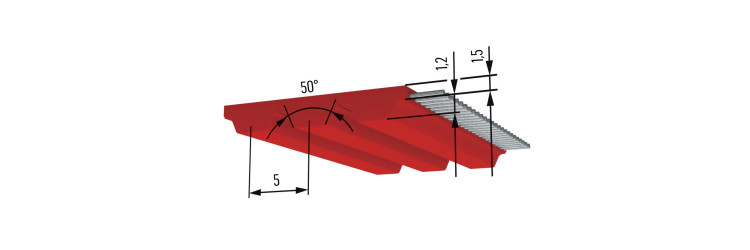

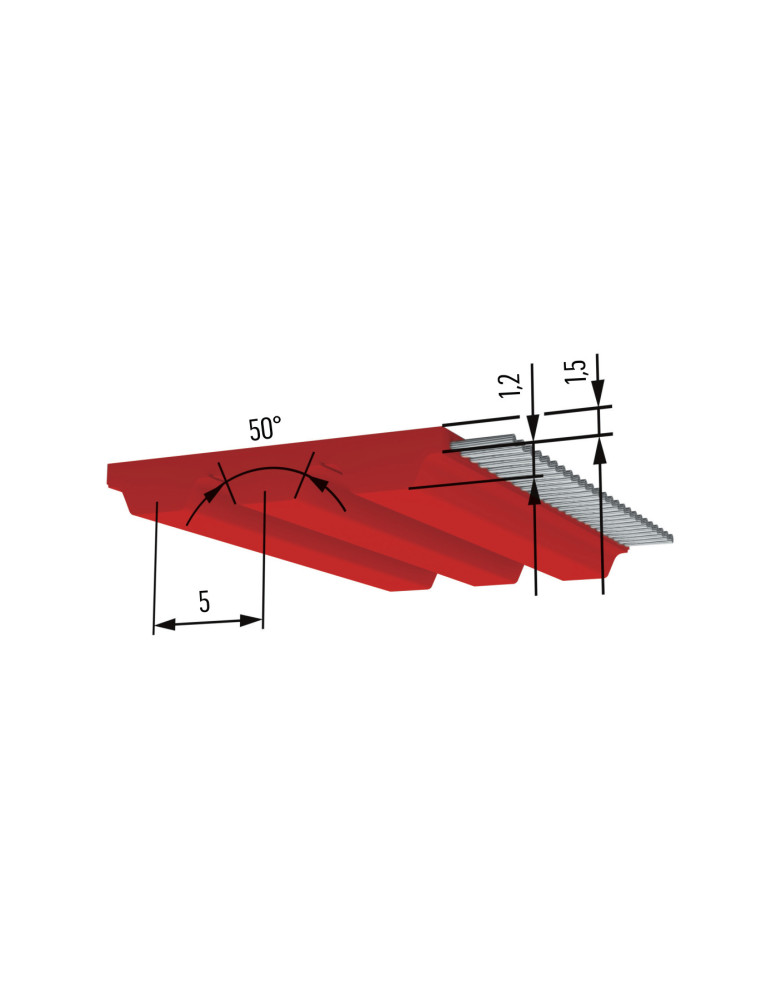

- Profile / Pitch
- AT5
- Profile
- AT
- Pitch
- 5
- PU Material steel tension member
- DNHU 9333
- Shore hardness steel tension member belt
- 93 ShA
- Temperature range of steel tension member belt
- -20 à 100 °C
- Winding
- wire
- Standard belt lengths
- 720, 920, 2000, 1750, 225, 300, 330, 375, 450, 500, 525, 600, 620, 630, 710, 860, 900, 1050, 1125, 1500, 480, 750, 780, 825, 875, 975, 1230, 3800, 260, 280, 340, 390, 420, 455, 545, 610, 660, 690, 255, 490, 670 mm
- Belt width
- 100 mm
- Weight
- 0,36 kg/m
- Number of teeth
- 90, 100, 120, 150, 180, 300, 400, 45, 60, 66, 75, 105, 124, 126, 142, 172, 210, 225, 52, 78, 98, 350, 144, 156, 165, 175, 184, 195, 246, 760, 84, 96, 132, 56, 68, 91, 109, 122, 138, 51, 134
- P max
- ≤ 18 kW
- Steel tension member permissible force FN
- 9117 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Z min alternating bending E cable
- 20
- Z min single bending E cable
- 15
- Ø min Flexion simple câble E
- 25 mm
- Ø min alternée simple câble E
- 60 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 40 mm
- Z min alternating bending stainless steel cable
- 30
- Ø min alternée simple câble Inox
- 70 mm
