BINDER premium 50 AT10 GENIII Power belts

Synchroflex® GEN III belt

Accueil  |  Belts,Pulleys, Accessories  |  Belts  |  Power belts  |

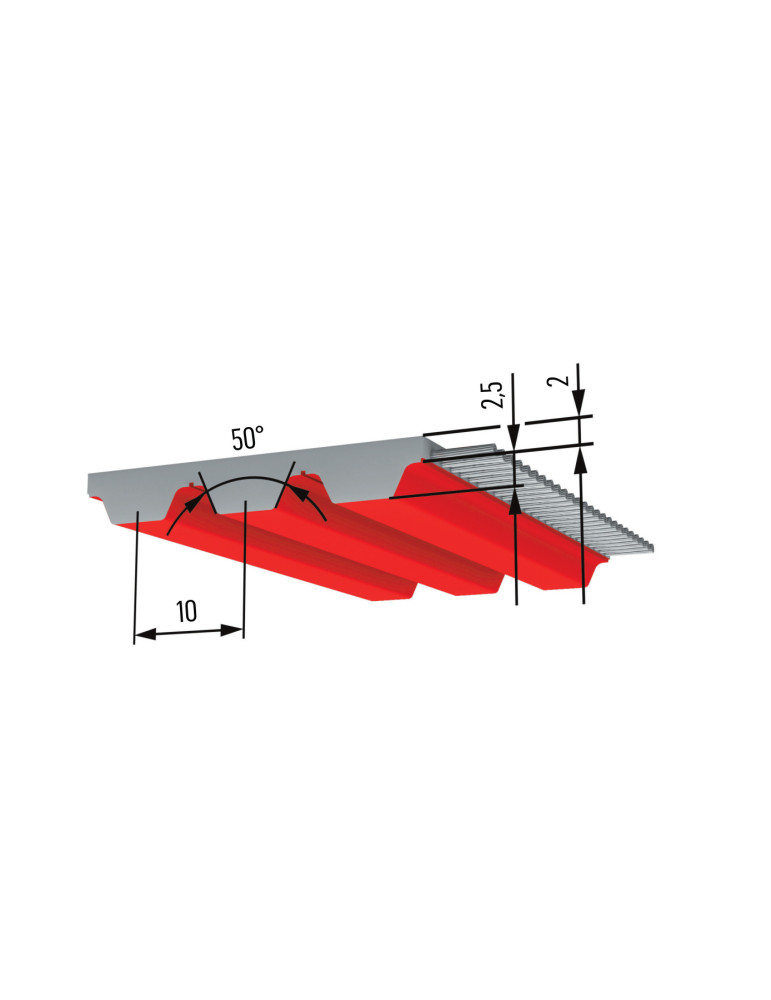

BINDER premium 50 AT10 GENIII

Synchroflex® GEN III belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERpremium
Product range power belts
Synchroflex® GEN III belt
Applications
Precision application

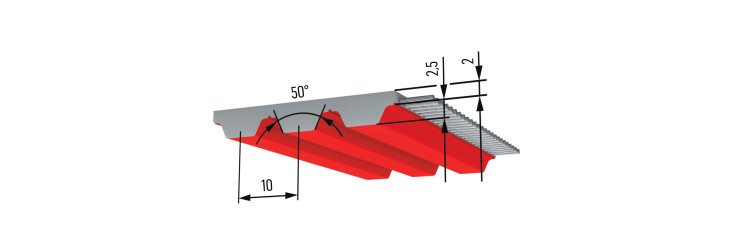

Profile / Pitch
AT10
Profile
AT
Pitch
10
PU Material steel tension member
DNHU 9333
Shore hardness steel tension member belt
93 ShA
Temperature range of steel tension member belt
-20 à 100 °C
Winding
wire
P max
≤ 87 kW
Steel tension member permissible force FN
10750 N
N max
10000 tr/min
V max
60 m/s
Standard belt lengths
800, 920, 960, 1000, 1200, 1280, 1600, 1400, 460, 500, 600, 700, 840, 890, 1050, 1500, 880, 1360, 1800, 780, 1100, 1700, 1900, 980, 1010, 1080, 1150, 1210, 1250, 1320, 1350, 1300, 610, 660, 440, 46, 570, 580, 730, 1480, 1720, 1860, 1940 mm
Belt width
50 mm
Weight
0,365 kg/m
Number of teeth
80, 100, 115, 120, 125, 130, 140, 150, 160, 180, 135, 170, 190, 57, 60, 66, 70, 92, 105, 110, 148, 172, 44, 78, 98, 50, 84, 88, 89, 96, 101, 108, 121, 132, 186, 136, 56, 61, 73, 128, 46, 58, 194
Z min alternating bending E cable
20
Z min single bending standard cable
15
Ø min Flexion simple câble standard
50 mm
Z min alternating bending standard cable
25
Ø min alternée simple câble standard
120 mm
Z min single bending E cable
12
Ø min Flexion simple câble E
50 mm
Ø min alternée simple câble E
80 mm
Z min single bending stainless steel cable
25
Ø min Flexion simple câble Inox
80 mm
Z min alternating bending stainless steel cable
40
Ø min alternée simple câble Inox
120 mm
