BINDER access 25 T2,5 SYN

Synchroflex® micromechanical belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERaccess
Product range power belts
Synchroflex® micromechanical belt
Applications
Micromechanical application

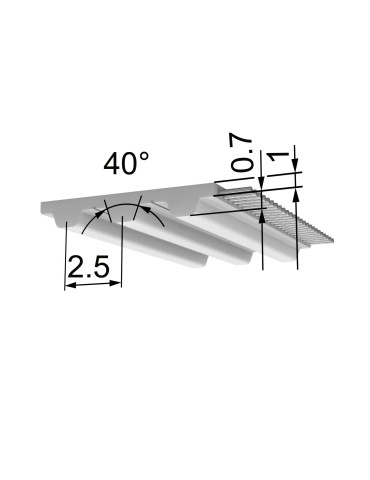

Profile / Pitch
T2,5
Profile
T
Pitch
2
PU Material steel tension member
DEDU 8600
Shore hardness steel tension member belt
88 ShA
Temperature range of steel tension member belt
-20 à 80 °C
Winding
wire
P max
≤0,5 kW
Steel tension member permissible force FN
312 N
N max
20000 tr/min
V max
80 m/s
Standard belt lengths
200, 225, 265, 285, 330, 500, 600, 620, 950, 480, 160, 780, 1350, 1300, 305, 420, 180, 120, 145, 177,5, 182,5, 230, 245, 250, 290, 317,5, 380, 395, 540, 650, 1475 mm
Belt width
25 mm
Weight
0,038 kg/m
Number of teeth
80, 90, 100, 200, 71, 92, 127, 168, 240, 98, 192, 380, 72, 132, 106, 116, 260, 73, 122, 158, 216, 58, 48, 64, 14, 152, 248, 312, 520, 540, 590
Z min single bending standard cable
10
Ø min Flexion simple câble standard
15 mm
Z min alternating bending standard cable
18
Ø min alternée simple câble standard
15 mm
