BINDER access 10 AT3 SYN Power belts
Synchroflex® standard belt
Synchroflex® standard belt
Power belts
- Range
- BINDERaccess
- Product range power belts
- Synchroflex® standard belt
- Applications
- Precision application

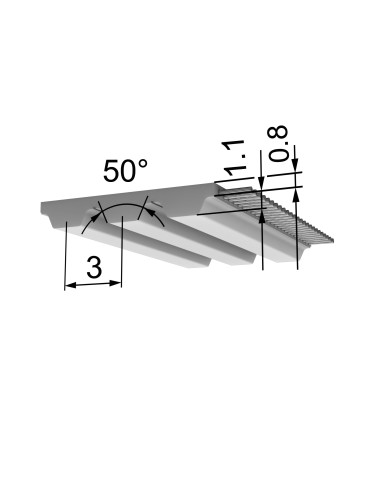

- Profile / Pitch
- AT3
- Profile
- AT
- Pitch
- 3
- PU Material steel tension member
- DEDU 8600
- Shore hardness steel tension member belt
- 88 ShA
- Temperature range of steel tension member belt
- -20 à 80 °C
- Winding
- wire
- Standard belt lengths
- 300, 450, 600, 900, 270, 150, 201, 252, 267, 351, 399, 417, 501, 549, 639, 648, 714, 816, 1011 mm
- Belt width
- 10 mm
- Weight
- 0,023 kg/m
- Number of teeth
- 90, 100, 150, 200, 300, 133, 167, 50, 84, 89, 139, 213, 238, 67, 117, 183, 216, 272, 337
- P max
- ≤5 kW
- Steel tension member permissible force FN
- 380 N
- Stainless steel member permissible force FN
- 335 N
- N max
- 20000 tr/min
- V max
- 80 m/s
- Z min alternating bending E cable
- 20
- Z min single bending E cable
- 15
- Ø min Flexion simple câble E
- 20 mm
- Ø min alternée simple câble E
- 20 mm
- Product range
- Synchroflex® standard belt
