BINDER access 32 AT3 SYN

Synchroflex® standard belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERaccess
Product range power belts
Synchroflex® standard belt
Applications
Precision application

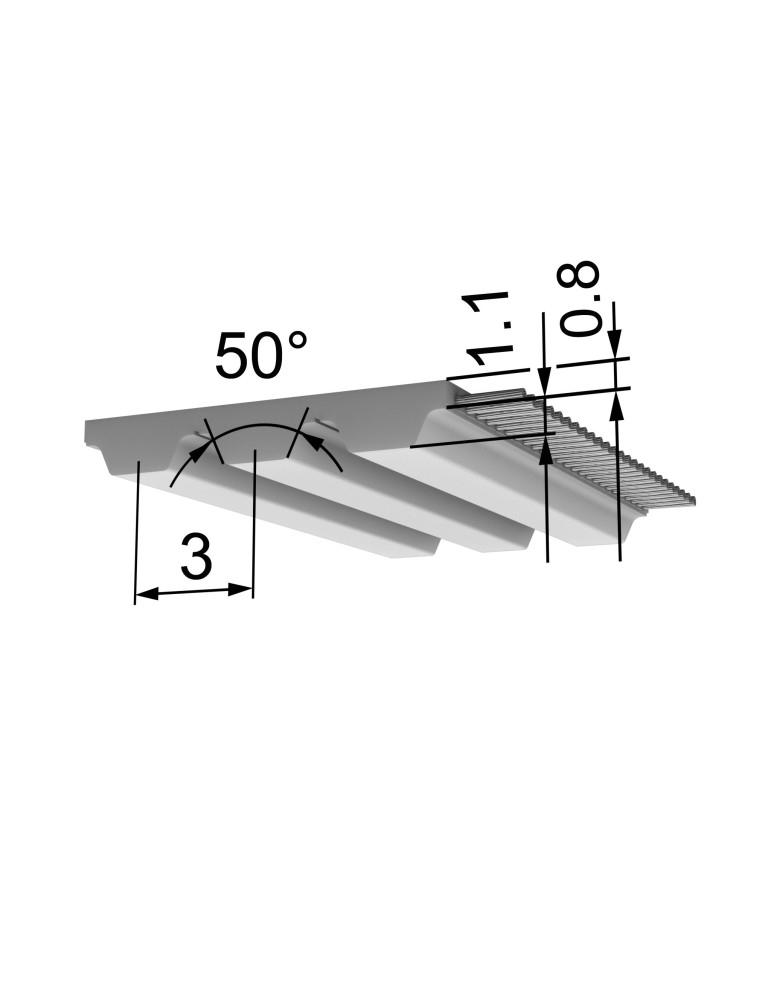

Profile / Pitch
AT3
Profile
AT
Pitch
3
PU Material steel tension member
DEDU 8600
Shore hardness steel tension member belt
88 ShA
Temperature range of steel tension member belt
-20 à 80 °C
Winding
wire
P max
≤5 kW
Steel tension member permissible force FN
1406 N
Stainless steel member permissible force FN
1230 N
N max
20000 tr/min
V max
80 m/s
Standard belt lengths
300, 450, 600, 900, 270, 150, 201, 252, 267, 351, 399, 417, 501, 549, 639, 648, 714, 816, 1011 mm
Belt width
32 mm
Weight
0,074 kg/m
Number of teeth
90, 100, 150, 200, 300, 133, 167, 50, 84, 89, 139, 213, 238, 67, 117, 183, 216, 272, 337
Z min alternating bending E cable
20
Z min single bending E cable
15
Ø min Flexion simple câble E
20 mm
Ø min alternée simple câble E
20 mm
