BINDER access 75 T5 DL SYN Power belts
Synchroflex® standard belt
Synchroflex® standard belt
Write your review
BINDER access 75 T5 DL SYN: this belt is suitable for applications requiring good synchronization. The belt is therefore produced from a molded sleeve integrally ; available lengths following molds.
Power belts
- Range
- BINDERaccess
- Product range power belts
- Synchroflex® standard belt
- Applications
- Simple application

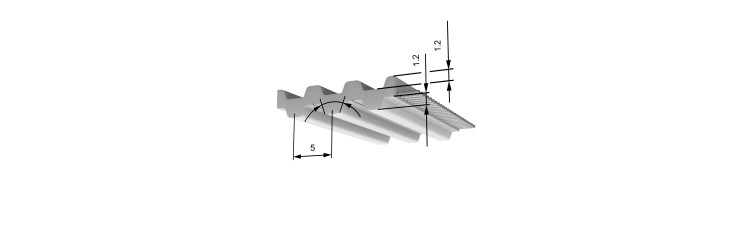

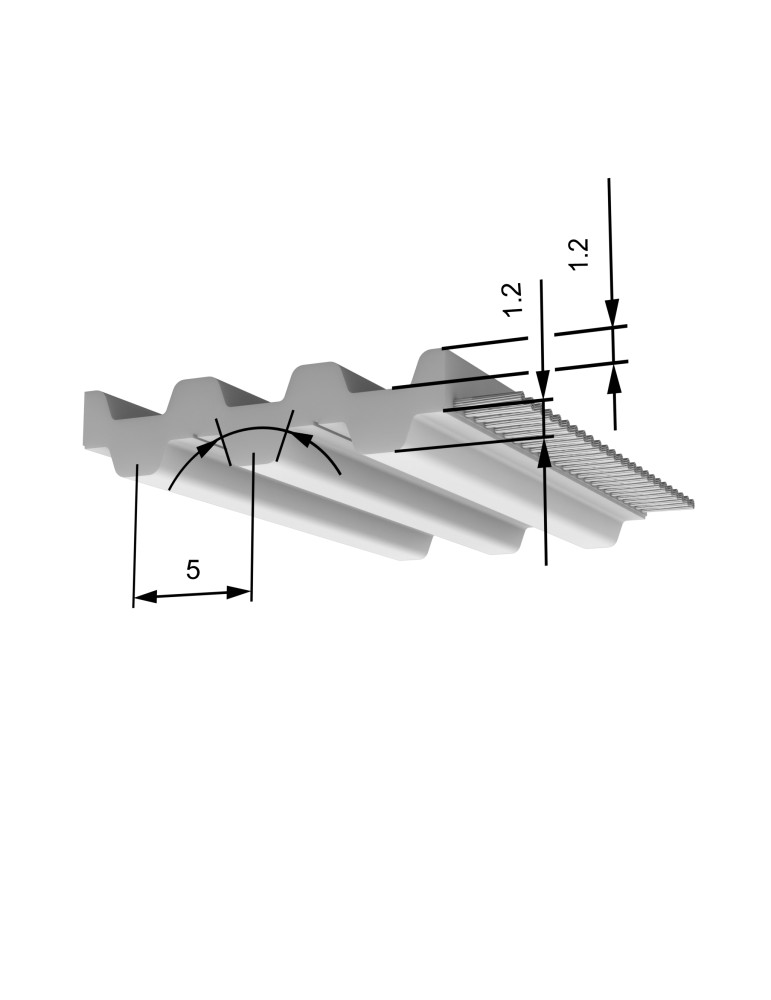

- Profile / Pitch
- T5
- Profile
- T
- Pitch
- 5
- Double toothed belt
- DL
- PU Material steel tension member
- DEDU 8600
- Shore hardness steel tension member belt
- 88 ShA
- Temperature range of steel tension member belt
- -20 à 80 °C
- Winding
- wire
- Standard belt lengths
- 300, 460, 525, 620, 860, 750, 1100, 815, 260, 410, 940, 1325, 150, 590, 515, 625 mm
- Belt width
- 75 mm
- Weight
- 0,203 kg/m
- Number of teeth
- 125, 150, 220, 60, 92, 105, 124, 172, 52, 82, 163, 188, 265, 30, 118, 103
- P max
- ≤5 kW
- Steel tension member permissible force FN
- 2940 N
- N max
- 10000 tr/min
- V max
- 80 m/s
- Product range
- Synchroflex® standard belt
- Z min single bending standard cable
- 10
- Ø min Flexion simple câble standard
- 30 mm
- Z min alternating bending standard cable
- 15
