BINDER access 12 T10 SYN

Synchroflex® standard belt

Power belts
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERaccess
Product range power belts
Synchroflex® standard belt
Applications
Simple application

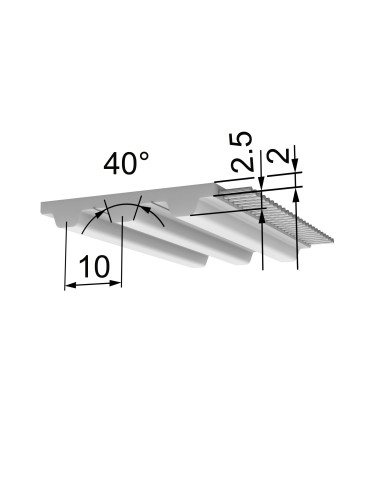

Profile / Pitch
T10
Profile
T
Pitch
10
PU Material steel tension member
DEDU 8600
Shore hardness steel tension member belt
88 ShA
Temperature range of steel tension member belt
-20 à 80 °C
Winding
wire
Standard belt lengths
720, 920, 960, 1400, 1610, 1750, 1960, 350, 400, 450, 500, 600, 630, 700, 840, 890, 1420, 1500, 560, 880, 750, 780, 810, 850, 970, 980, 1010, 1080, 1150, 1210, 1240, 1250, 1320, 2250, 1350, 1390, 1460, 1560, 1780, 1880, 3100, 1300, 260, 370, 410, 610, 660
Belt width
12 mm
Weight
0,051 kg/m
Number of teeth
115, 125, 130, 140, 150, 85, 135, 40, 45, 53, 60, 66, 70, 75, 81, 92, 124, 142, 178, 225, 44, 78, 97, 98, 114, 145, 50, 156, 175, 72, 84, 88, 89, 96, 101, 108, 121, 132, 139, 146, 161, 188, 196, 310, 56, 61, 68, 73, 63, 69, 111, 478, 37, 26, 35, 41, 76
P max
≤30 kW
Steel tension member permissible force FN
750 N
Stainless steel member permissible force FN
600 N
N max
10000 tr/min
V max
60 m/s
Z min single bending standard cable
12
Ø min Flexion simple câble standard
60 mm
Z min alternating bending standard cable
20
Ø min alternée simple câble standard
60 mm
