BINDER access 20 T20 SYN Power belts
Synchroflex® standard belt
Synchroflex® standard belt
Write your review
BINDER access 20 T20 SYN: this belt is suitable for applications requiring good synchronization. The belt is therefore produced from a molded sleeve integrally ; available lengths following molds.
Power belts
- Range
- BINDERaccess
- Product range power belts
- Synchroflex® standard belt
- Applications
- Simple application

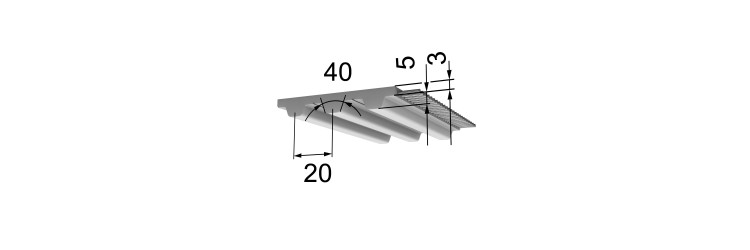

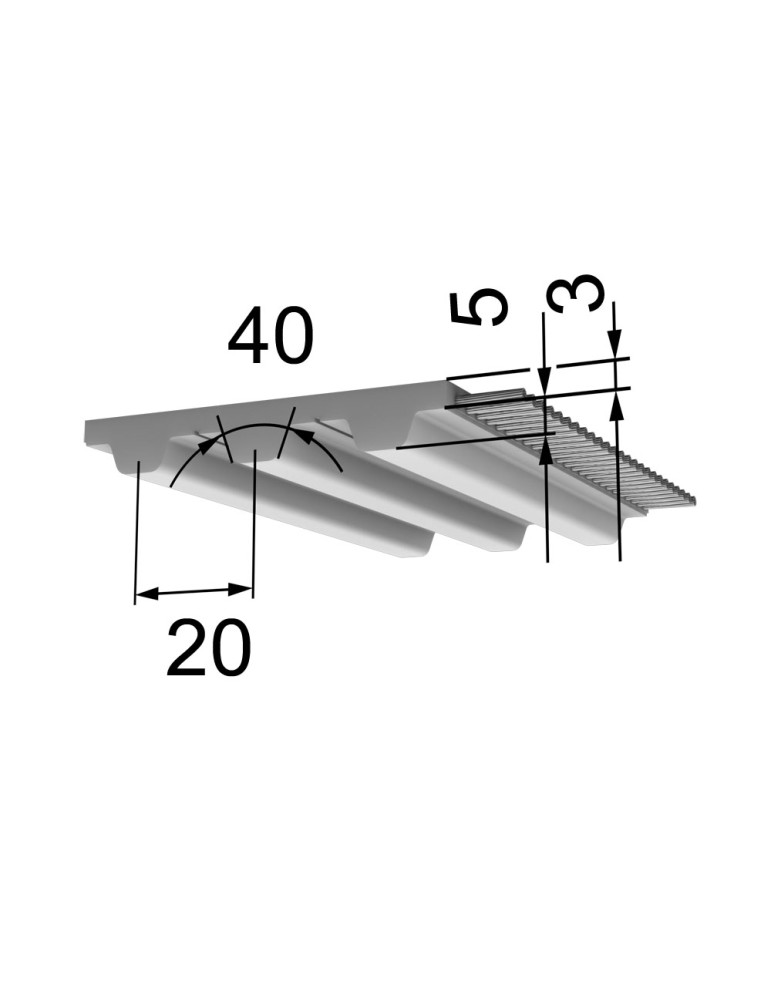

- Profile / Pitch
- T20
- Profile
- T
- Pitch
- 20
- PU Material steel tension member
- DEDU 8600
- Shore hardness steel tension member belt
- 88 ShA
- Temperature range of steel tension member belt
- -20 à 80 °C
- Winding
- wire
- Standard belt lengths
- 1260, 2360, 1460, 1780, 1880, 3100, 2600, 3620 mm
- Belt width
- 20 mm
- Weight
- 0,147 kg/m
- Number of teeth
- 130, 89, 73, 63, 118, 181, 94, 155
- P max
- ≤100 kW
- Steel tension member permissible force FN
- 2900 N
- Stainless steel member permissible force FN
- 2100 N
- N max
- 6500 tr/min
- V max
- 40 m/s
- Product range
- Synchroflex® standard belt
- Z min single bending standard cable
- 15
- Ø min Flexion simple câble standard
- 120 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 120 mm
