16 AT3 22 Pulleys
16 AT3 22: Binder Magnetic pulleys are manufactured according to the MULCO standard to work optimally with our belts. Our standard pulleys are made of RoHS-compliant 2017 aluminum. We strongly recommend a high-strength AlHR (7075) aluminum alloy for high-power applications.
Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 22
- Profile / Pitch
- AT3
- Profile
- AT

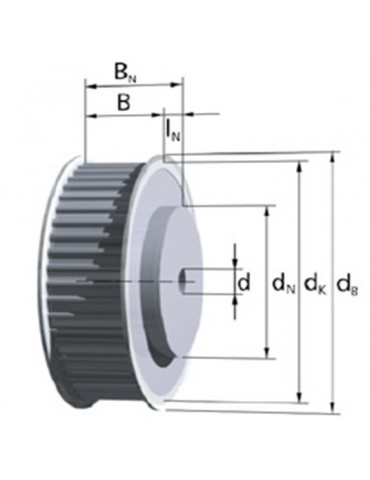

- Width without shoulder B
- 10 mm
- Width with shoulder Bn
- 16 mm
- Tooth tip diameter dk
- 20,6 mm
- Shoulder diameter dn
- 14 mm
- Minimum stock bore diameter dv
- 6 mm
- Outside diameter of flange db
- 26 mm
- Belt width b
- 6 mm
- Pitch
- 3 mm
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- Yes
