46 AT5 16

46 AT5 16


46 AT5 16: Binder Magnetic pulleys are manufactured according to the MULCO standard to work optimally with our belts. Our standard pulleys are made of RoHS-compliant 2017 aluminum. We strongly recommend a high-strength AlHR (7075) aluminum alloy for high-power applications.
Pulleys
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Standard material
AL 2017A
Number of teeth Z
16
Profile / Pitch
AT5
Profile
AT

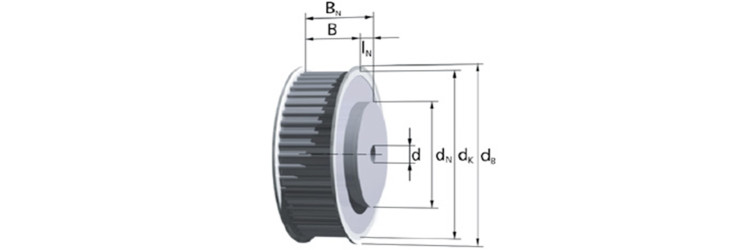

Width without shoulder B
40 mm
Width with shoulder Bn
46 mm
Tooth tip diameter dk
24,24 mm
Shoulder diameter dn
18 mm
Minimum stock bore diameter dv
6 mm
Outside diameter of flange db
30 mm
Belt width b
32 mm
Pitch
5 mm
Options
Additional information available in the technical explanations
On stock, ex factory France
No
