70 AT20 19 Pulleys
70 AT20 19: Binder Magnetic pulleys are manufactured according to the MULCO standard to work optimally with our belts. Our standard pulleys are made of RoHS-compliant 2017 aluminum. We strongly recommend a high-strength AlHR (7075) aluminum alloy for high-power applications.
Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 19
- Profile / Pitch
- AT20
- Profile
- AT

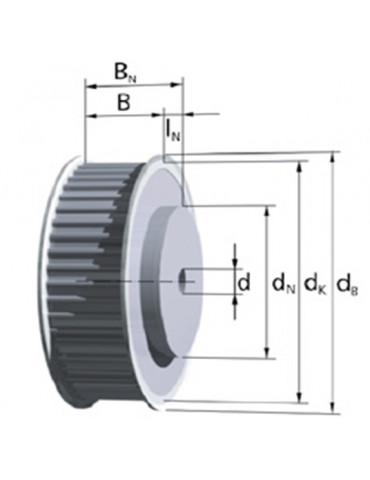

- Width without shoulder B
- 60 mm
- Width with shoulder Bn
- 70 mm
- Tooth tip diameter dk
- 118,14 mm
- Shoulder diameter dn
- 80 mm
- Minimum stock bore diameter dv
- 12 mm
- Outside diameter of flange db
- 128 mm
- Belt width b
- 50 mm
- Pitch
- 20 mm
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- No
