50 AT20 38

50 AT20 38


Pulleys
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Standard material
AL 2017A
Number of teeth Z
38
Profile / Pitch
AT20
Profile
AT
Options
Additional information available in the technical explanations
On stock, ex factory France
No

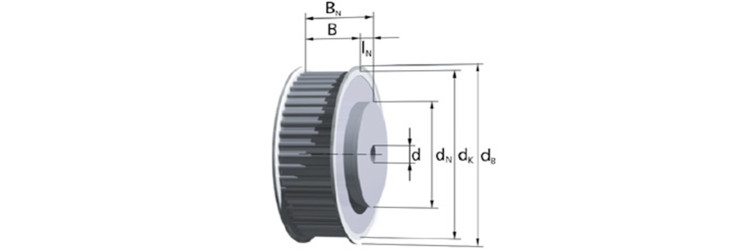

Width without shoulder B
40 mm
Width with shoulder Bn
50 mm
Tooth tip diameter dk
239,1 mm
Shoulder diameter dn
110 mm
Minimum stock bore diameter dv
18 mm
Outside diameter of flange db
249 mm
Belt width b
32 mm
Pitch
20 mm
