40 T10 12 Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 12
- Profile / Pitch
- T10
- Profile
- T
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- Yes

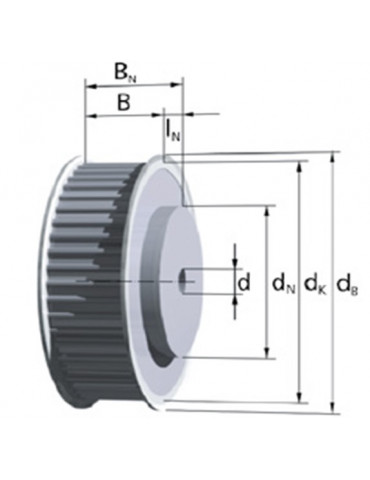

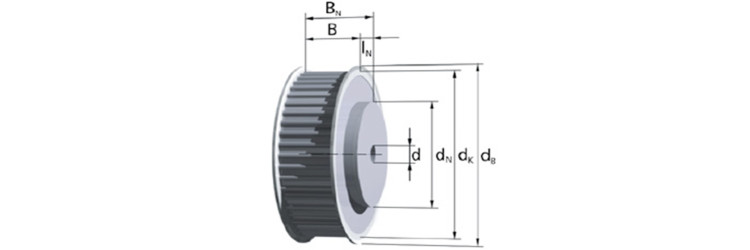

- Width without shoulder B
- 30 mm
- Width with shoulder Bn
- 40 mm
- Tooth tip diameter dk
- 36,35 mm
- Shoulder diameter dn
- 28 mm
- Minimum stock bore diameter dv
- 6 mm
- Outside diameter of flange db
- 42 mm
- Belt width b
- 25 mm
- Pitch
- 10 mm
