22 HTD5 26 Pulleys

Accueil | Belts, Pulleys, Accessories | Pulleys |
22 HTD5 26

22 HTD5 26

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Technical characteristics Options Masses and dimensions

Standard material: AL 2017A

Number of teeth Z: 26

Profile / Pitch: HTD5

Profile: HTD

Options: Additional information available in the technical explanations

On stock, ex factory France: No

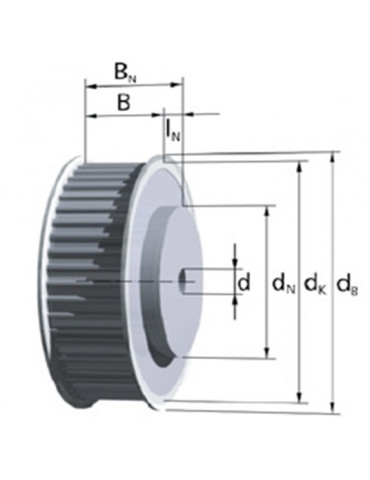

Width without shoulder B: 16 mm

Width with shoulder Bn: 22 mm

Tooth tip diameter dk: 40,24 mm

Outside diameter of flange db: 44 mm

Belt width b: 10 mm

Pitch: 5 mm
