105 ATK10 82 K13 Pulleys
105 ATK10 82 K13: Binder Magnetic pulleys are manufactured according to the MULCO standard to work optimally with our belts. Our standard pulleys are made of RoHS-compliant 2017 aluminum. We strongly recommend a high-strength AlHR (7075) aluminum alloy for high-power applications.
Pulleys
- Standard material
- AL 2017A
- Number of teeth Z
- 82
- Profile / Pitch
- ATK10
- Profile
- ATK
- Tooth tip diameter dk
- 259,19 mm
- Minimum stock bore diameter dv
- 20 mm
- Belt width b
- 100 mm
- Pitch
- 10 mm

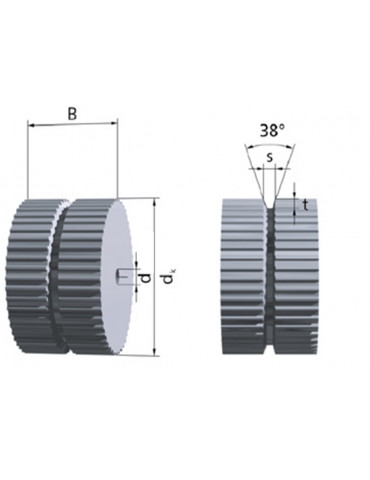

- Self-guided without shoulder B
- 105 mm
- Guide K13 dimension S
- 13,5 mm
- Guide K13 dimension T
- 7,5 mm
- Guide profile
- K13
- Options
- Additional information available in the technical explanations
- On stock, ex factory France
- No
