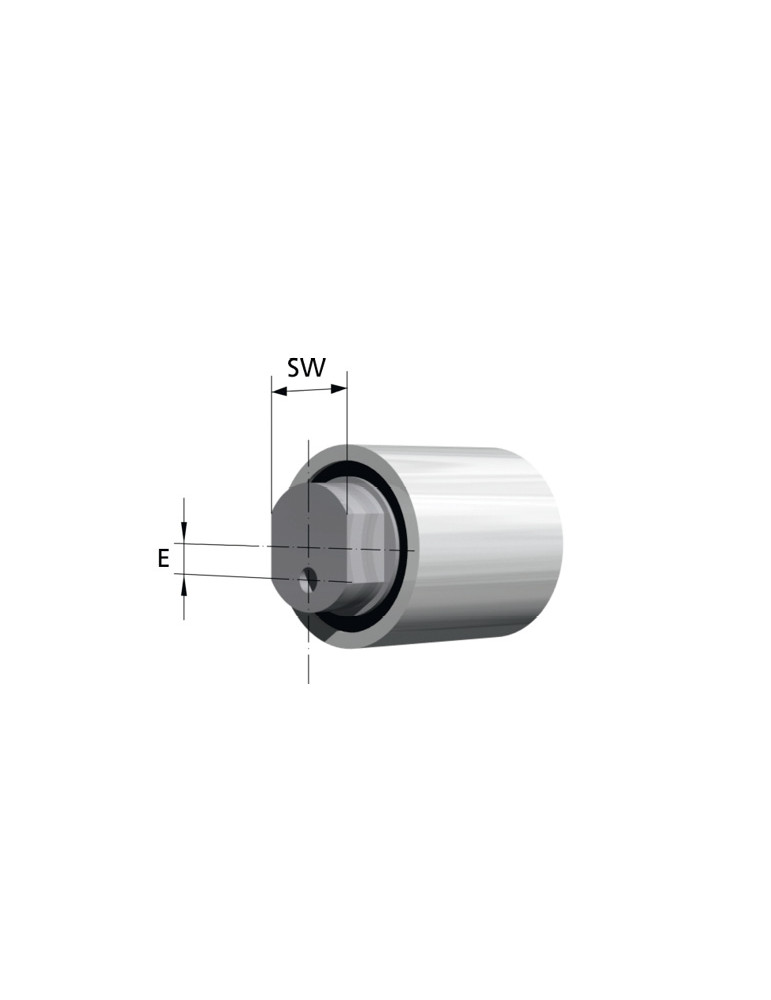

B/E0Al40/80-0

Rollers with eccentric shaft

Type B smooth eccentric roller is designed for rear mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
Grayed out functions require you to be logged in to your account
login to my account

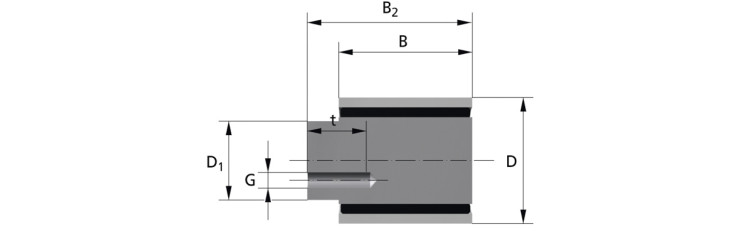

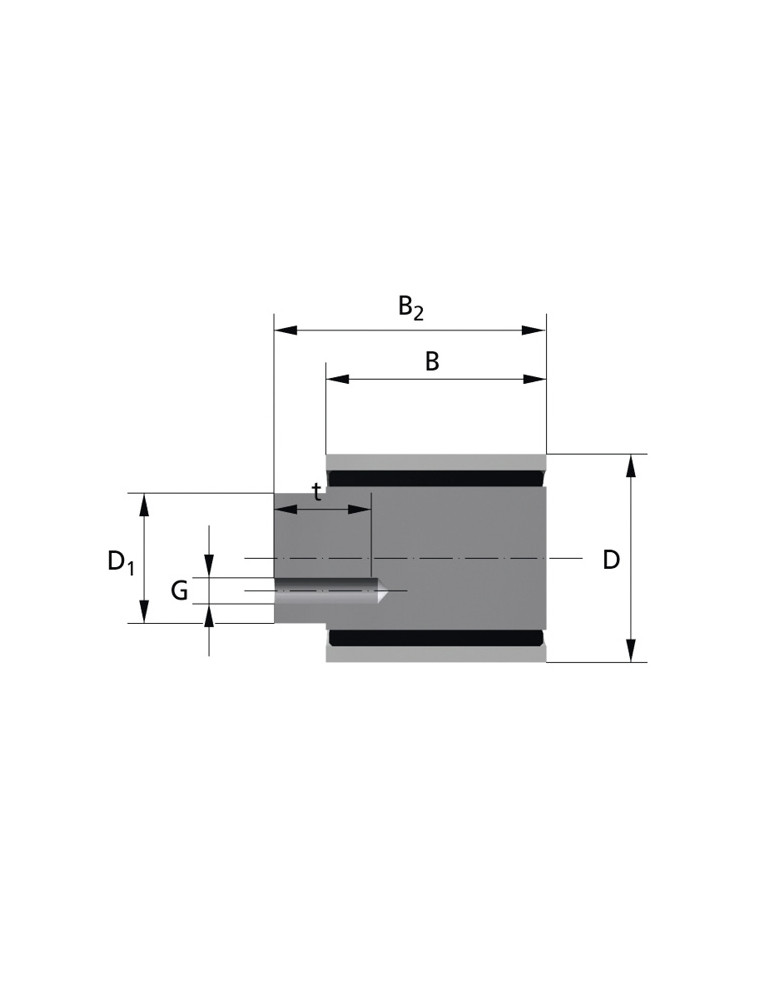

Dimensional plan
Belt maximum width
32 mm
Dimension dB
-  mm
Thread G
M12
Dimension T
20 mm

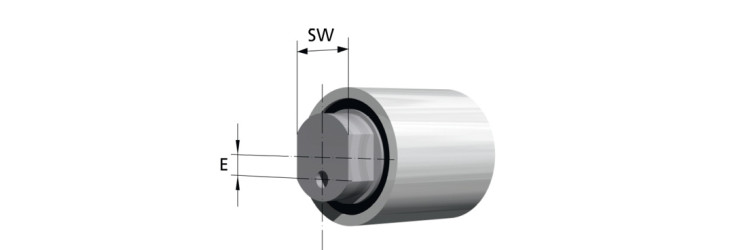

Dimension SW
27 mm
Dimension B
40 mm
Dimension D
80 mm
Dimension B2
50 mm
Dimension E
5 mm
Dimension D1
30 mm
Dynamic load
19300 N
Static load
13100 N
Max. speed
5000 tr/min
Profile / Pitch
Lisse
Product range
Rollers with eccentric shaft
Type
B/E0
Material
Al
Product range
Rollers with eccentric shaft
