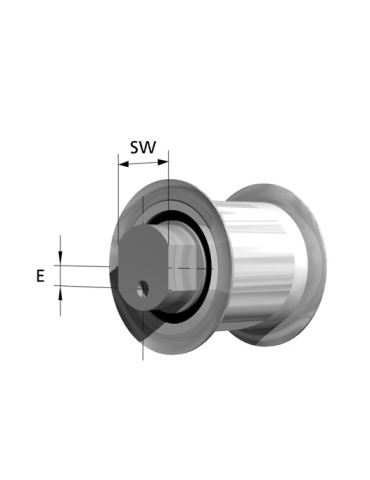

B/E2Al64/120-2 Rollers
Rollers with eccentric shaft
Rollers with eccentric shaft
Type B smooth eccentric roller is designed for rear mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Product range
- Rollers with eccentric shaft
- Type
- B/E2
- Material
- Al
- Belt maximum width
- 50
- Belt maximum width
- 50 mm
- Number of flanges
- 2
- Dimension dB
- 132
- Dimension dB
- 132 mm
- Thread G
- M12
- Thread G
- M12
- Dimension T
- 20
- Dimension T
- 20 mm
- Dimension SW
- 27
- Dimension SW
- 27 mm
- Dimension B
- 64
- Dimension B
- 64 mm
- Dimension D
- 120
- Dimension D
- 120 mm
- Dimension B2
- 74
- Dimension B2
- 74 mm
- Dimension E
- 5
- Dimension E
- 5 mm
- Dimension D1
- 30
- Dimension D1
- 30 mm
- Product range
- Rollers with eccentric shaft
- Dynamic load
- 19300
- Dynamic load
- 19300 N
- Static load
- 13100 N
- Static load
- 13100
- Max. speed
- 5000
- Max. speed
- 5000 tr/min
- Profile / Pitch
- Lisse
