B/F0Al70/180-0 Rollers
Fixed rollers
Fixed rollers
The Type B fixed-axis smooth roller is designed for rear-mount mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Product range
- Fixed rollers
- Type
- B/F0
- Material
- Al
- Belt maximum width
- 50
- Belt maximum width
- 50 mm

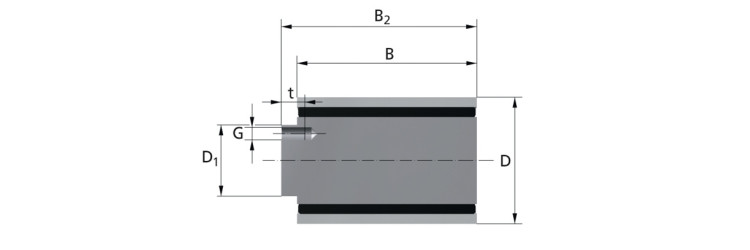

- Dimension dB
- -
- Dimension dB
- - mm
- Thread G
- M12 (3×)
- Thread G
- M12 (3×)
- Dimension T
- 25
- Dimension T
- 25 mm
- Dimension K
- 65
- Dimension K
- 65 mm
- Dimension B
- 70
- Dimension B
- 70 mm
- Dimension D
- 180
- Dimension D
- 180 mm
- Dimension B2
- 85
- Dimension B2
- 85 mm
- Dimension D1
- 106
- Dimension D1
- 106 mm
- Product range
- Fixed rollers
- Dynamic load
- 70500
- Dynamic load
- 70500 N
- Static load
- 48000 N
- Static load
- 48000
- Max. speed
- 5000
- Max. speed
- 5000 tr/min
- Profile / Pitch
- Lisse
