B/E0Al34AT5/22-0 Rollers

Toothed tension rollers

Accueil  |  Belts,Pulleys, Accessories  |  Accessories  |  Rollers  |
B/E0Al34AT5/22-0

Toothed tension rollers

The Type B toothed eccentric roller is designed for rear mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
Grayed out functions require you to be logged in to your account
login to my account

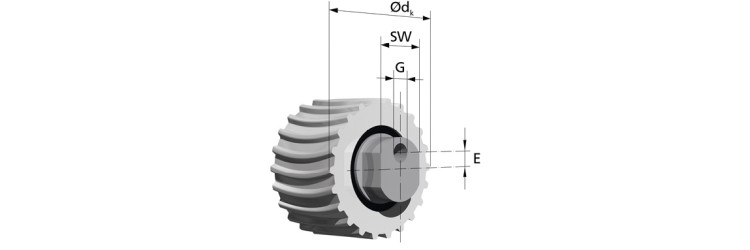

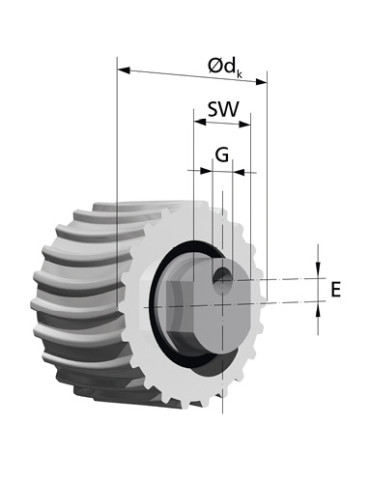

Dimensional plan
Belt maximum width
25 mm
Thread G
M6
Dimension T
10 mm
Dimension SW
17 mm
Dimension dk
33,79 mm
Number of teeth
22
Dimension B
34 mm
Dimension B2
42 mm
Dimension E
5 mm
Dimension D1
20 mm
Dynamic load
7950 N
Static load
3920 N
Max. speed
15000 tr/min
Profile / Pitch
AT5
Product range
Toothed tension rollers
Type
B/E0
Material
Al
Product range
Toothed tension rollers
