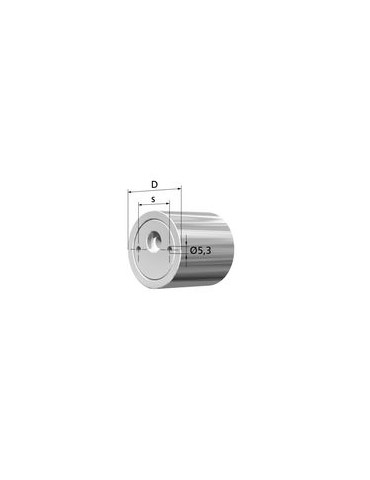

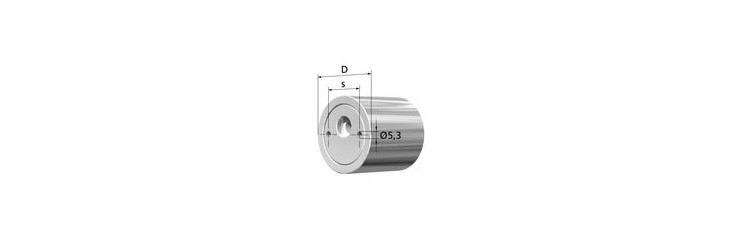

M60/60-0

M60/60-0


Rollers with eccentric shaft

The M Series Strong Smooth Eccentric Roller is designed for front mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account

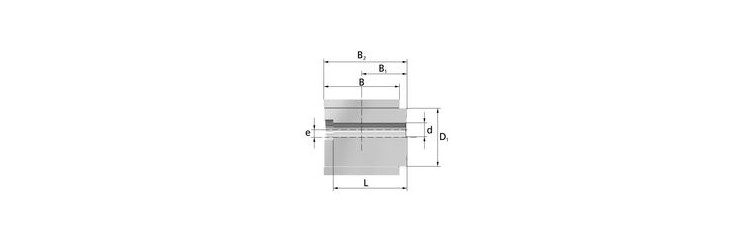

Dimensional plan
Product range
Rollers with eccentric shaft
Type
M
Material
Al
Belt maximum width
50
Belt maximum width
50 mm
Dimension dB
11
Dimension dB
11 mm
Dimension SW
35
Dimension SW
35 mm
Dimension K
57,5 mm
Dimension K
57,5
Dimension S
35
Dimension S
35 mm
Dimension B
60
Dimension B
60 mm
Dimension D
60, 11
Dimension D
60, 11 mm
Dimension B2
66
Dimension B2
66 mm
Dimension E
6
Dimension E
6 mm
Dimension D1
46
Dimension D1
46 mm
Dimension B1
36
Dimension B1
36 mm
Product range
Rollers with eccentric shaft
Dynamic load
19300
Dynamic load
19300 N
Static load
11200
Static load
11200 N
Max. speed
15000
Max. speed
15000 tr/min
Profile / Pitch
Lisse
