M160/180-0 Rollers

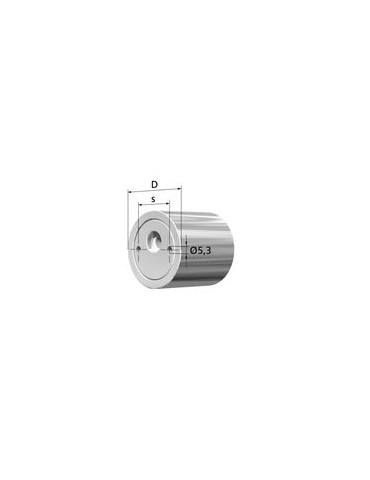

Rollers with eccentric shaft
Rollers with eccentric shaft
The M Series Strong Smooth Eccentric Roller is designed for front mounting. The bearings are greased for a long time to a special grease. Temperature resistance: 70 ° C permanently, 120 ° C in short point.
Rollers
- Belt maximum width
- 150 mm
- Dimension dB
- 26 mm
- Dimension SW
- 70 mm
- Dimension K
- 153,5 mm
- Dimension S
- 70 mm
- Dimension B
- 160 mm
- Dimension D
- 180, 26 mm
- Dimension B2
- 170 mm
- Dimension E
- 30 mm
- Dimension D1
- 137 mm
- Dimension B1
- 83 mm
- Dynamic load
- 100000 N
- Static load
- 78000 N
- Max. speed
- 4800 tr/min
- Profile / Pitch
- Lisse
- Product range
- Rollers with eccentric shaft
- Type
- M
- Material
- Al
- Product range
- Rollers with eccentric shaft
