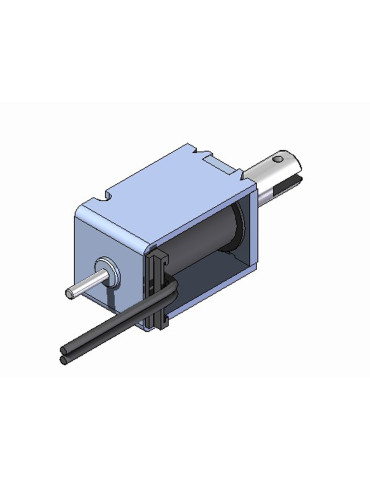

ER20-05/C - DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation

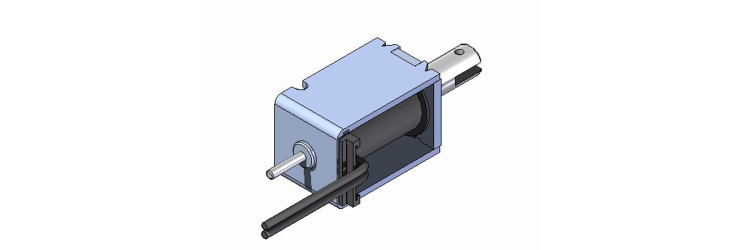

The simple solenoid 'Economic Series' are our entry level. They are intended for classic applications. The magnetic circuit, in cut sheet metal, folded and crimped, is closed in the shape of 'D'. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids

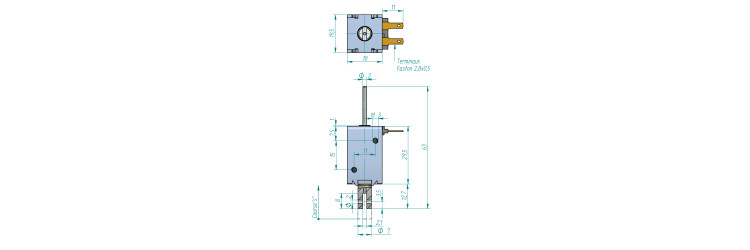

- Body length
- 30,5 mm
- Width solenoid
- 18 mm
- Coil weight
- 12 g
- Height
- 19,5 mm
- Total weight
- 45 g
- Stroke
- 5 mm

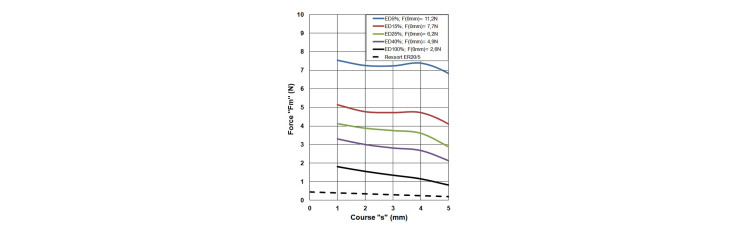

- Force at beginning of stroke
- 2,8 N
- Force at end of stroke
- 6,2 N
- Internal return spring
- yes
- Duration of attraction
- 27 ms
- Recoil time
- 21 ms
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 0,25 N
- Spring force at the end of the stroke
- 0,44 N
- Options
- Other voltages and duty factors on request./ Lugs connection (faston 2,8*0,5)
- Product range
- Solenoid for simple operation
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 2 min
- Power
- 16 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24 V
- IP protection
- IP 00
