ER60-10/C - DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation

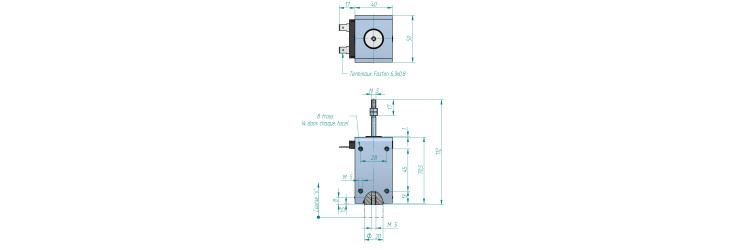

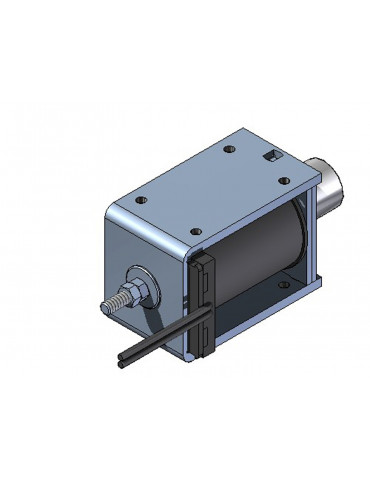

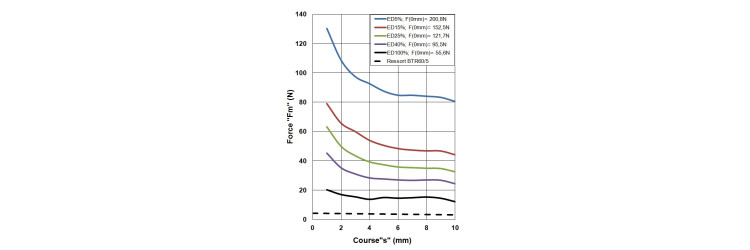

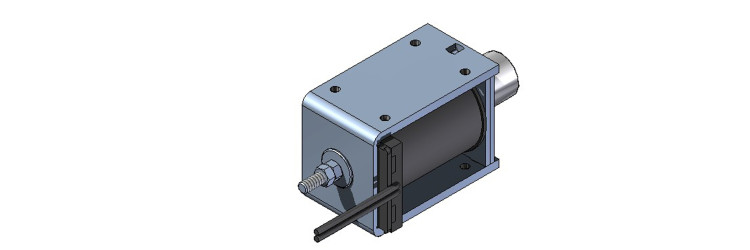

ER60-10/C - DC25% : this simple control solenoid 'Economic Series' is our entry level model. It is intended for classic applications. The magnetic circuit, in cut sheet metal, folded and crimped, is closed in the shape of 'D'. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 71,5
- Body length
- 71,5 mm
- Width solenoid
- 40
- Width solenoid
- 40 mm
- Coil weight
- 117
- Coil weight
- 117 g
- Height
- 50
- Height
- 50 mm
- Total weight
- 650
- Total weight
- 650 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 3,21
- Spring force at the beginning of the stroke
- 3,21 N
- Spring force at the end of the stroke
- 4,3
- Spring force at the end of the stroke
- 4,3 N
- Options
- Other voltages and duty factors on request./ Lugs connection (faston 6,3*0,8)
- Stroke
- 10
- Stroke
- 10 mm
- Force at beginning of stroke
- 32
- Force at beginning of stroke
- 32 N
- Force at end of stroke
- 121,7
- Force at end of stroke
- 121,7 N
- Internal return spring
- yes
- Duration of attraction
- 126
- Duration of attraction
- 126 ms
- Recoil time
- 81
- Recoil time
- 81 ms
- Duty cycle
- 25
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 70
- Power
- 70 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24 V
- Standard voltages
- 24
- IP protection
- IP 00
