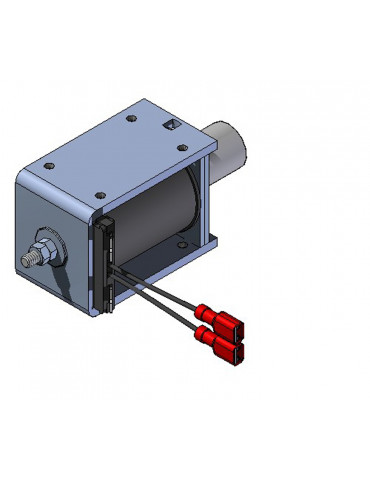

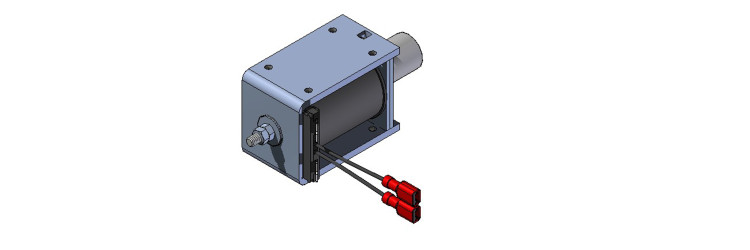

ERD60-05/C - DC20% Solenoids
Solenoid for simple operation
Solenoid for simple operation
The ERD60-05 / C is equipped with 2 coils. These 2 coils are powered to travel the race and get an increased force when moving the core. As soon as the core has reached the end of the stroke (in abutment), only one holding coil (FM 100%) remains energized thanks to an external contact. This design makes it possible to obtain: a high force at the beginning of the race a significant reduction in the heating up a saving of energy. This principle can be realized on demand for other devices (consult us).
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 71,5 mm
- Body length
- 71,5
- Width solenoid
- 40
- Width solenoid
- 40 mm
- Coil weight
- 117
- Coil weight
- 117 g
- Height
- 50
- Height
- 50 mm
- Total weight
- 720
- Total weight
- 720 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Options
- Other voltages and duty factors on request.
- Other characteristics
- Operating temperature: -10 ° C to + 65 ° C
- Stroke
- 25
- Stroke
- 25 mm
- Internal return spring
- integrated (3 possibilities of spring-to be specified)
- Duration of attraction
- 122
- Duration of attraction
- 122 ms
- Recoil time
- 84
- Recoil time
- 84 ms
- Duty cycle
- 20
- Duty cycle
- 20 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 68
- Power
- 68 W
- Connection
- according to plan and indications
- Insulation class
- Y
- Standard voltages
- 24 ou 48
- Standard voltages
- 24 ou 48 V
- IP protection
- IP 00
