ERC30-08/C - DC15% Solenoids
Solenoid for simple operation
Solenoid for simple operation

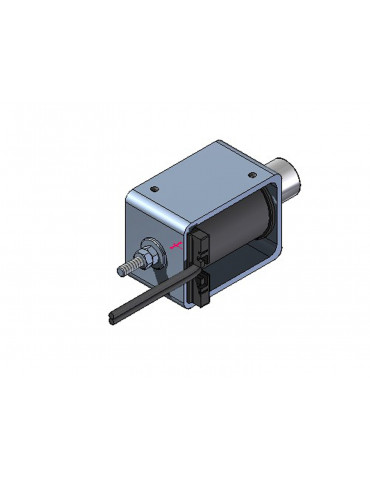

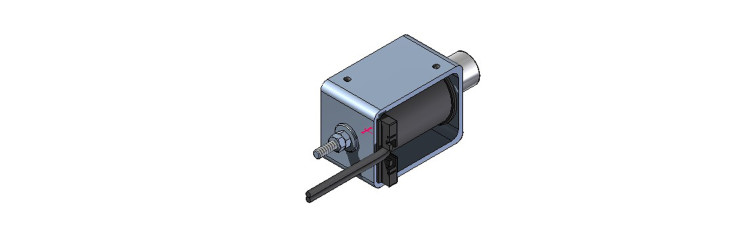

ERC30-08/C - DC15% : this simple 'Profile Series' solenoids is for everyday applications. The mechanical structure and magnetic performance are superior to the ER-Economic Series. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Product range
- Solenoid for simple operation

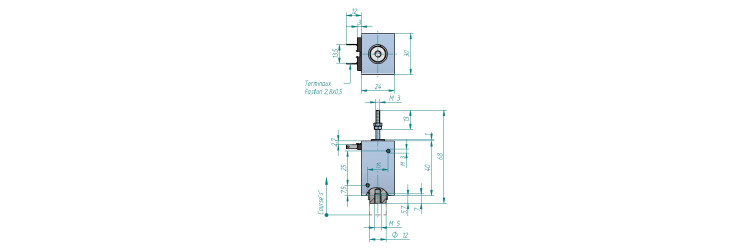

- Body length
- 41
- Body length
- 41 mm
- Width solenoid
- 24
- Width solenoid
- 24 mm
- Coil weight
- 25
- Coil weight
- 25 g
- Height
- 30
- Height
- 30 mm
- Total weight
- 130
- Total weight
- 130 g
- Stroke
- 8
- Stroke
- 8 mm

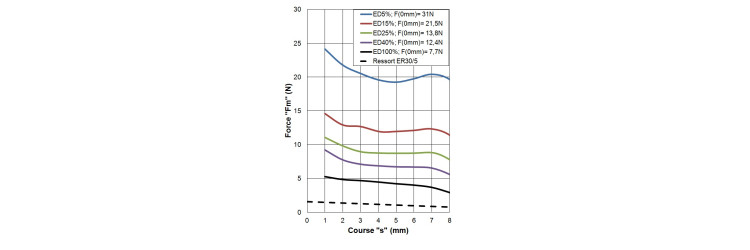

- Force at beginning of stroke
- 12
- Force at beginning of stroke
- 12 N
- Force at end of stroke
- 24
- Force at end of stroke
- 24 N
- Internal return spring
- yes
- Duration of attraction
- 43 ms
- Duration of attraction
- 43
- Recoil time
- 30
- Recoil time
- 30 ms
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 0,59
- Spring force at the beginning of the stroke
- 0,59 N
- Spring force at the end of the stroke
- 1,57
- Spring force at the end of the stroke
- 1,57 N
- Options
- Other voltages and duty factors on request./ Lugs connection (faston 6,3*0,8)
- Duty cycle
- 15
- Duty cycle
- 15 %
- Duration of the cycle for the calculation
- 2
- Duration of the cycle for the calculation
- 2 min
- Power
- 50
- Power
- 50 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 00
