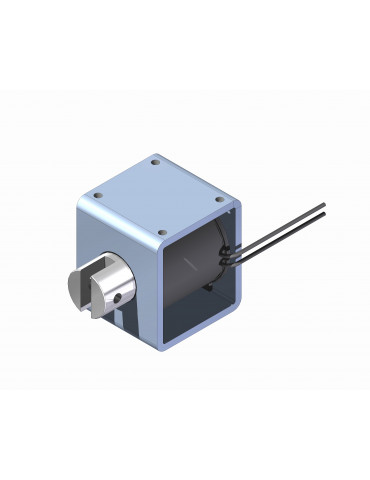

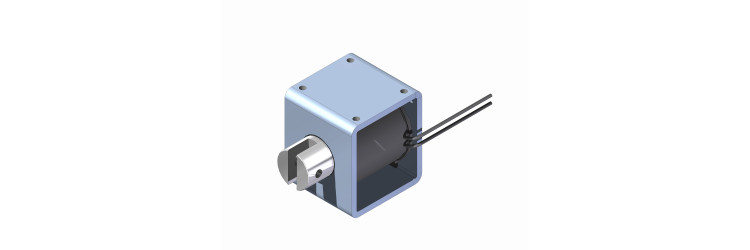

ERC40-15/CT - DC25% Solenoids
Solenoid for simple operation
Solenoid for simple operation
ERC40-15/CT - DC25% : this simple 'Profile Series' solenoids is for everyday applications. The mechanical structure and magnetic performance are superior to the ER-Economic Series. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Product range
- Solenoid for simple operation

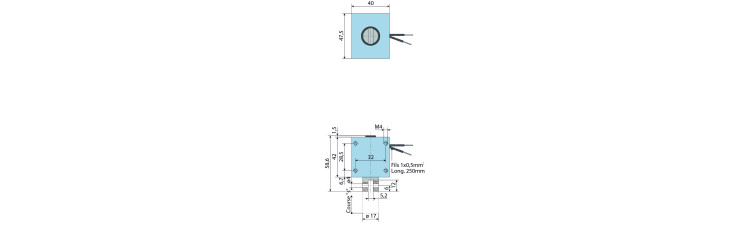

- Body length
- 43,5
- Body length
- 43,5 mm
- Width solenoid
- 40
- Width solenoid
- 40 mm
- Coil weight
- 65
- Coil weight
- 65 g
- Height
- 47,5
- Height
- 47,5 mm
- Total weight
- 368 g
- Total weight
- 368
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Options
- Other voltages and duty factors on request.
- Stroke
- 15
- Stroke
- 15 mm

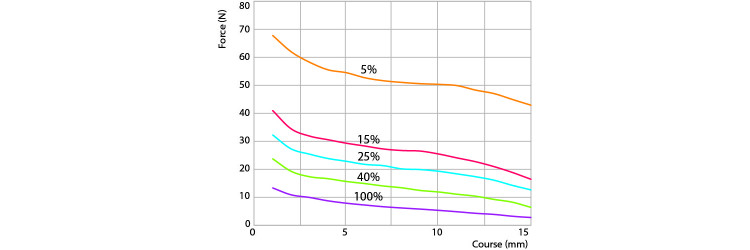

- Force at beginning of stroke
- 13
- Force at beginning of stroke
- 13 N
- Force at end of stroke
- 68,4
- Force at end of stroke
- 68,4 N
- Internal return spring
- no
- Duration of attraction
- 109
- Duration of attraction
- 109 ms
- Recoil time
- 76
- Recoil time
- 76 ms
- Duty cycle
- 25
- Duty cycle
- 25 %
- Duration of the cycle for the calculation
- 3
- Duration of the cycle for the calculation
- 3 min
- Power
- 44 W
- Power
- 44
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 00
