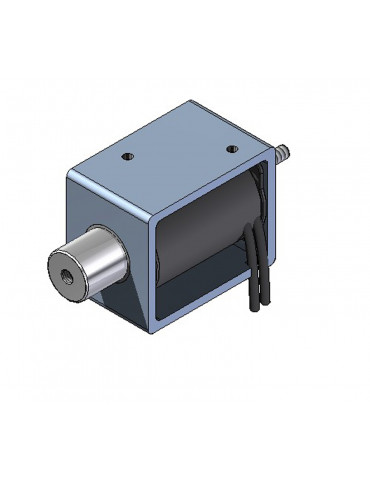

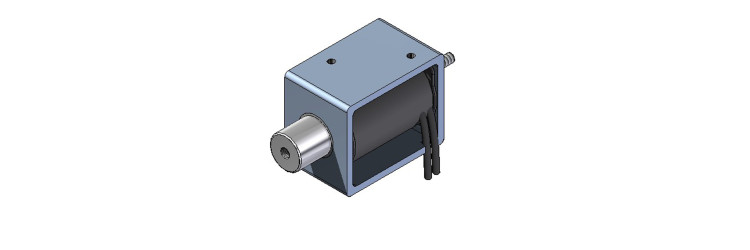

ERC45-50-15/C - DC5% Solenoids
Solenoid for simple operation
Solenoid for simple operation
ERC45-50-15/C - DC5% : this simple 'Profile Series' solenoids is for everyday applications. The mechanical structure and magnetic performance are superior to the ER-Economic Series. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 51
- Body length
- 51 mm
- Width solenoid
- 32
- Width solenoid
- 32 mm
- Coil weight
- 52
- Coil weight
- 52 g
- Height
- 40
- Height
- 40 mm
- Total weight
- 297
- Total weight
- 297 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 1,76
- Spring force at the beginning of the stroke
- 1,76 N
- Spring force at the end of the stroke
- 3,62
- Spring force at the end of the stroke
- 3,62 N
- Options
- Other voltages and duty factors on request.
- Stroke
- 15
- Stroke
- 15 mm
- Force at beginning of stroke
- 40
- Force at beginning of stroke
- 40 N
- Force at end of stroke
- 83
- Force at end of stroke
- 83 N
- Internal return spring
- yes
- Duration of attraction
- 72
- Duration of attraction
- 72 ms
- Recoil time
- 47 ms
- Recoil time
- 47
- Duty cycle
- 5
- Duty cycle
- 5 %
- Duration of the cycle for the calculation
- 2
- Duration of the cycle for the calculation
- 2 min
- Power
- 228
- Power
- 228 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 00
