ERC60-20/C - DC40% Solenoids
Solenoid for simple operation
Solenoid for simple operation
ERC60-20/C - DC40% : this simple 'Profile Series' solenoids is for everyday applications. The mechanical structure and magnetic performance are superior to the ER-Economic Series. In upright position, consider the weight of the core. When the coil is energized, the core is drawn into the body of the electromagnet.
Solenoids
- Product range
- Solenoid for simple operation

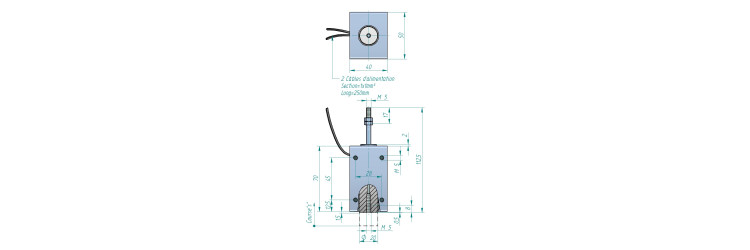

- Body length
- 72
- Body length
- 72 mm
- Width solenoid
- 40
- Width solenoid
- 40 mm
- Coil weight
- 110 g
- Coil weight
- 110
- Height
- 50
- Height
- 50 mm
- Total weight
- 660
- Total weight
- 660 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 2,12
- Spring force at the beginning of the stroke
- 2,12 N
- Spring force at the end of the stroke
- 4,3
- Spring force at the end of the stroke
- 4,3 N
- Options
- Other voltages and duty factors on request.
- Stroke
- 20
- Stroke
- 20 mm

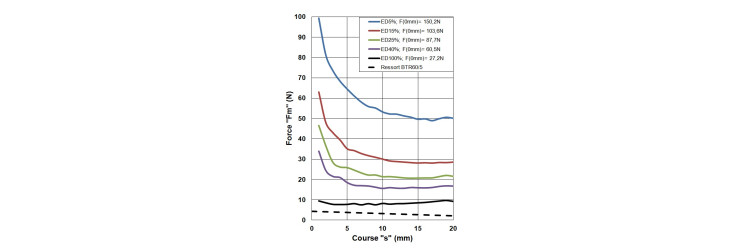

- Force at beginning of stroke
- 19
- Force at beginning of stroke
- 19 N
- Force at end of stroke
- 86
- Force at end of stroke
- 86 N
- Internal return spring
- yes
- Duration of attraction
- 137
- Duration of attraction
- 137 ms
- Recoil time
- 93
- Recoil time
- 93 ms
- Duty cycle
- 40
- Duty cycle
- 40 %
- Duration of the cycle for the calculation
- 5
- Duration of the cycle for the calculation
- 5 min
- Power
- 45
- Power
- 45 W
- Connection
- Free wires
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP 00
